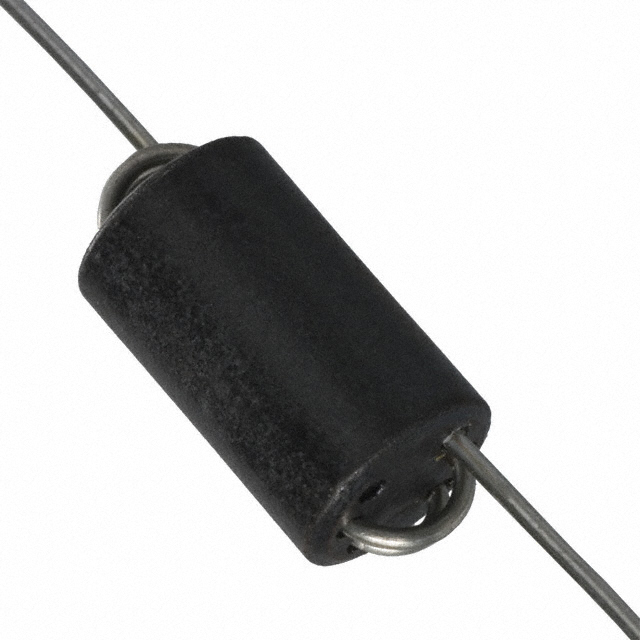

FB20010-3B-RC
ActiveBourns Inc.
FERRITE BEAD 780 OHM AXIAL 1LN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FB20010-3B-RC |
|---|---|
| Current Rating (Max) [Max] | 5 A |
| Impedance @ Frequency | 780 Ohms |
| Mounting Type | Through Hole |
| Number of Lines | 1 |
| Package / Case | Axial |
| Size / Dimension [diameter] | 0.236 in |
| Size / Dimension [diameter] | 5.99 mm |
| Size / Dimension [z] | 0.394 in |
| Size / Dimension [z] | 10.01 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.67 | |
| 10 | $ 0.57 | |||
| 25 | $ 0.49 | |||
| 50 | $ 0.44 | |||
| 110 | $ 0.39 | |||
| 330 | $ 0.35 | |||
| 550 | $ 0.32 | |||
| 1100 | $ 0.27 | |||
| 5060 | $ 0.25 | |||
Description
General part information
FB20010 Series
780 Ohms @ 100 MHz 1 Ferrite Bead Axial 5A
