G2S085-AA19-15
Obsoleteebm-papst Inc.

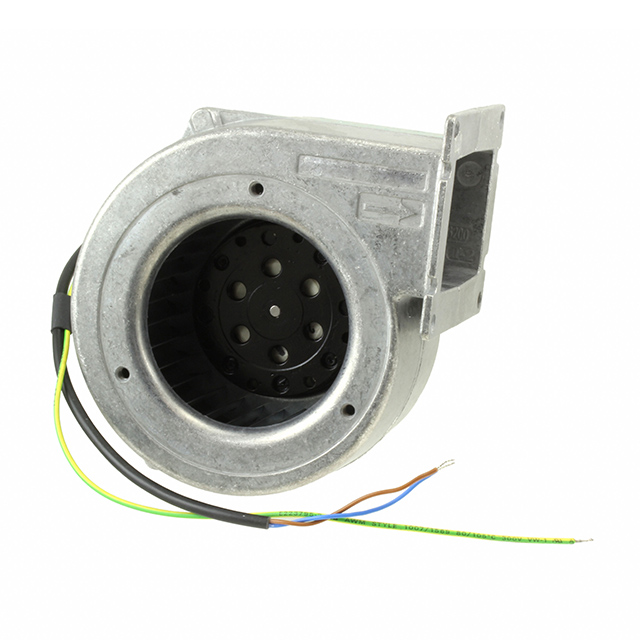

FAN BLWR CENT 118X80MM 115VAC
Deep-Dive with AI
Search across all available documentation for this part.
G2S085-AA19-15
Obsoleteebm-papst Inc.
FAN BLWR CENT 118X80MM 115VAC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | G2S085-AA19-15 |
|---|---|
| Air Flow | 26.5 CFM |
| Air Flow | 0.742 m³/min |
| Bearing Type | Ball |
| Fan Type | Blower, Centrifugal |
| Material - Blade | Steel |
| Material - Frame | Aluminum |
| Noise | 38 dB(A) |
| Power (Watts) | 22 W |
| Size / Dimension [diameter] | 85 mm |
| Size / Dimension [x] | 118 mm |
| Size / Dimension [z] | 117 mm |
| Termination | 2 Wire Leads |
| Voltage - Rated | 115 VAC |
| Weight | 816.5 g |
| Weight | 1.8 lbs |
| Width [y] | 80 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
G2S085 Series
Fan Blower, Centrifugal 115VAC Rectangular - 118mm L x 117mm H (85mm Dia) Ball 26.5 CFM (0.742mł/min) 2 Wire Leads
Documents
Technical documentation and resources
