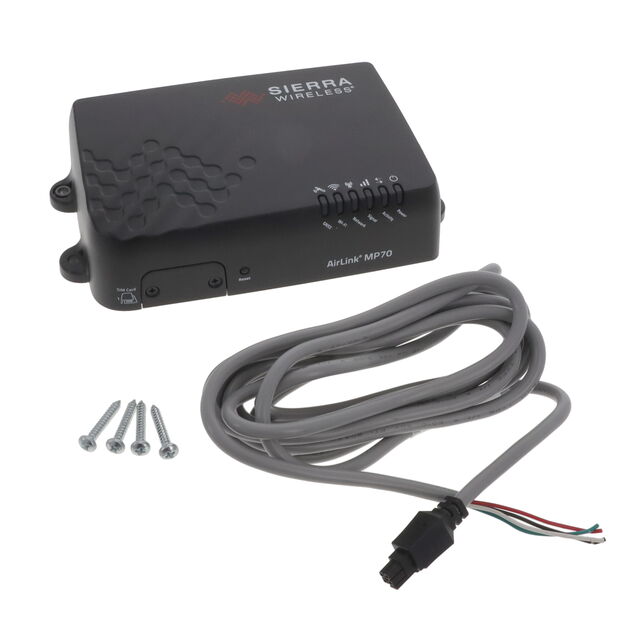

MP70_1104073

Active

Sierra Wireless AirLink

ROUTER WIFI LTE-A PRO NA + CBL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSierra Wireless 2020 AirLink® Networking Portfolio Datasheet

MP70_1104073

Active

Sierra Wireless AirLink

ROUTER WIFI LTE-A PRO NA + CBL

Deep-Dive with AI

DocumentsSierra Wireless 2020 AirLink® Networking Portfolio Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1099.00

Description

General part information

MP70 Series

4G/3G Cellular, HSPA+, LTE, WCDMA Router AT&T, Sprint, Verizon Ethernet, RJ-45, RS-232, USB

Documents

Technical documentation and resources

Sierra Wireless 2020 AirLink® Networking Portfolio

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MP70_1104073	MP70 Series

Applications	General Purpose	General Purpose
Data Rate (Max)	-	300 Mbps
Data Rate (Max) [Max]	50 Mbps	50 - 600 Mbps
Frequency	1.7 GHz, 1900 MHz, 1.5 GHz, 850 MHz, 800 MHz, 1800 MHz, 700 MHz, 900 MHz, 2600 MHz	1.5 - 2600 MHz
Interface	RJ-45, USB, RS-232, Ethernet	RJ-45, USB, RS-232, Ethernet
Modulation or Protocol	LTE, HSPA+, Cellular, WCDMA	LTE, HSPA+, Cellular, WCDMA
Power - Output	21 dBm	21 dBm
Sensitivity	-162 dBm	-162 dBm
Voltage - Supply [Max]	36 V	36 V
Voltage - Supply [Min]	7 V	7 V

MP70 Series

ROUTER LTE-A PRO GLOBAL+DC CABLE

Part	Power - Output	Applications	Data Rate (Max) [Max]	Sensitivity	Frequency	Interface	Voltage - Supply [Max]	Voltage - Supply [Min]	Modulation or Protocol	Data Rate (Max)
Sierra Wireless AirLink MP70_1104072	21 dBm	General Purpose	600 Mbps	-162 dBm	1.5 GHz, 1.7 GHz, 2.3 GHz, 700 MHz, 800 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2600 MHz	Ethernet, RJ-45, RS-232, USB	36 V	7 V	Cellular, HSPA+, LTE, WCDMA
Sierra Wireless AirLink MP70_1102745	21 dBm	General Purpose		-162 dBm	1.5 GHz, 1.7 GHz, 700 MHz, 800 MHz, 850 MHz, 900 MHz, 1800 MHz, 2100 MHz	Ethernet, RJ-45, RS-232, USB	36 V	7 V	Cellular, HSPA+, LTE, WCDMA	300 Mbps
Sierra Wireless AirLink MP70_1104074	21 dBm	General Purpose	600 Mbps	-162 dBm	1.5 GHz, 1.7 GHz, 2.3 GHz, 700 MHz, 800 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2600 MHz	Ethernet, RJ-45, RS-232, USB	36 V	7 V	Cellular, HSPA+, LTE, WCDMA
Sierra Wireless AirLink MP70_1104071	21 dBm	General Purpose	50 Mbps	-162 dBm	1.5 GHz, 1.7 GHz, 700 MHz, 800 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2600 MHz	Ethernet, RJ-45, RS-232, USB	36 V	7 V	Cellular, HSPA+, LTE, WCDMA
Sierra Wireless AirLink MP70_1102743	21 dBm	General Purpose		-162 dBm	700 MHz, 800 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2600 MHz	Ethernet, RJ-45, RS-232, USB	36 V	7 V	Cellular, HSPA+, LTE, WCDMA	300 Mbps
Sierra Wireless AirLink MP70_1104073	21 dBm	General Purpose	50 Mbps	-162 dBm	1.5 GHz, 1.7 GHz, 700 MHz, 800 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2600 MHz	Ethernet, RJ-45, RS-232, USB	36 V	7 V	Cellular, HSPA+, LTE, WCDMA
Sierra Wireless AirLink MP70_1102713	21 dBm	General Purpose		-162 dBm	1.5 GHz, 1.7 GHz, 700 MHz, 800 MHz, 850 MHz, 900 MHz, 1800 MHz, 2100 MHz	Ethernet, RJ-45, RS-232, USB	36 V	7 V	Cellular, HSPA+, LTE, WCDMA	300 Mbps
Sierra Wireless AirLink MP70_1102709	21 dBm	General Purpose		-162 dBm	700 MHz, 800 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2600 MHz	Ethernet, RJ-45, RS-232, USB	36 V	7 V	Cellular, HSPA+, LTE, WCDMA	300 Mbps
