22R-JED

Active

JST Sales America Inc.

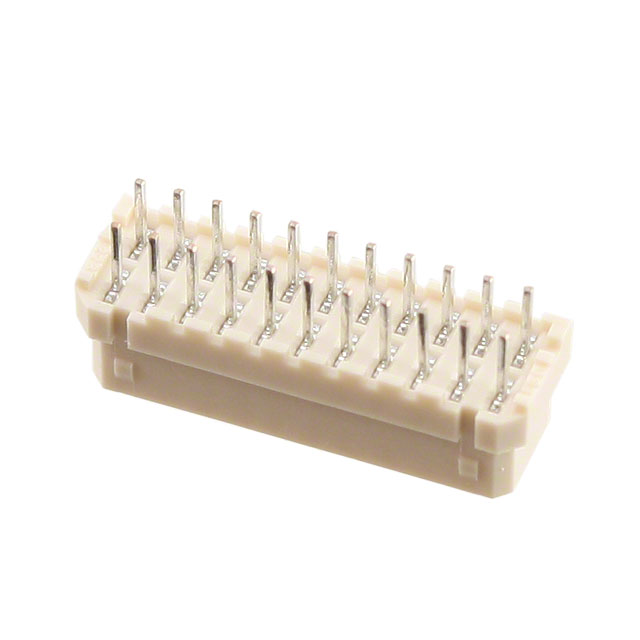

CONN RCPT 22POS 0.049 TIN PCB

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN RCPT 22POS 0.049 TIN PCB

Technical Specifications

Parameters and characteristics for this part

Specification	22R-JED

Connector Type	Receptacle
Contact Length - Post	0.079 "
Contact Length - Post	2 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Friction Lock
Insulation Color	Natural
Insulation Height	0.173 in
Insulation Height	4.4 mm
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	22 positions
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	1.25 mm
Pitch - Mating	0.049 in
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Termination	Solder
Voltage Rating	50 V

Part	Material Flammability Rating	Number of Positions	Contact Shape	Termination	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Voltage Rating	Mounting Type	Number of Rows	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Insulation Material	Contact Material	Pitch - Mating	Pitch - Mating	Contact Type	Connector Type
JST Sales America Inc. 22R-JED	UL94 V-0	22 positions	Square	Solder	All	0.079 in	2 mm	Friction Lock	-25 °C	85 °C	Natural	50 V	Through Hole	2	0.079 "	2 mm	0.173 in	4.4 mm	Polyamide (PA66) Nylon 6/6 Glass Filled	Phosphor Bronze	1.25 mm	0.049 in	Female Socket	Receptacle
