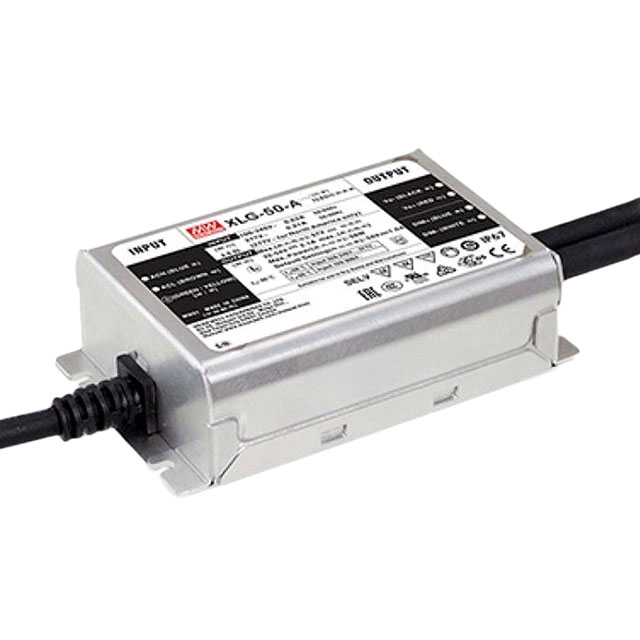

XLG-50-A

Active

MEAN WELL USA Inc.

50W CONSTANT POWER MODE LED DRIV

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

50W CONSTANT POWER MODE LED DRIV

Technical Specifications

Parameters and characteristics for this part

50W CONSTANT POWER MODE LED DRIV

Part	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Termination Style	Features	Current - Output (Max) [Max]	Voltage - Output [Max]	Voltage - Output [Min]	Ratings	Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Efficiency	Voltage - Isolation	Approval Agency	Voltage - Input (Max) [Max]	Mounting Type	Number of Outputs	Topology
MEAN WELL USA Inc. XLG-50-A	50 W	90 °C	-40 °C	100 VAC	Wire Leads	OTP, OVP, SCP	1 A	54 V	22 V	IP67	Constant Current	30 mm	2.48 in	1.18 in	3.54 in	90 mm	63 mm	90 %	3750 V	CB, CCC, CE, cURus, ENEC, RCM	305 VAC	Chassis Mount	1	AC DC Converter

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1A 22 ~ 54V Constant Current LED Driver AC DC Converter Topology 1 Output
