2285R 0081000

Active

Belden Inc.

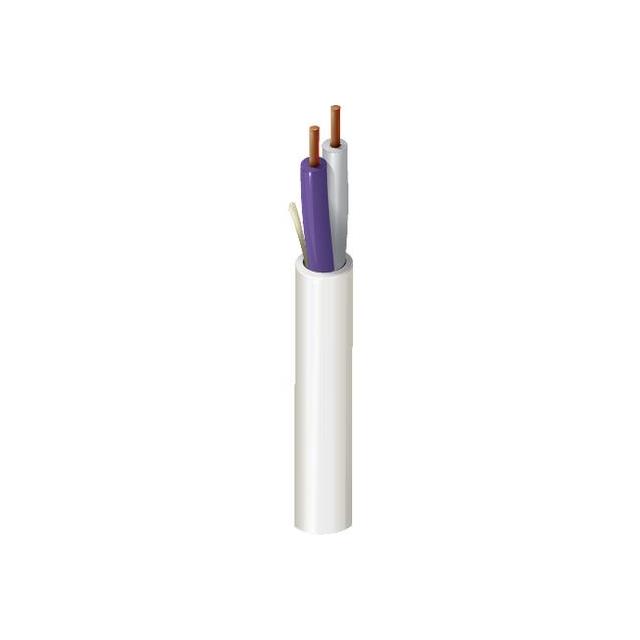

CABLE 2COND 18AWG GRAY

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 18AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	2285R 0081000

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Features	Rip Cord
Jacket (Insulation) Diameter [diameter]	3.63 mm
Jacket (Insulation) Diameter [diameter]	0.143 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket (Insulation) Thickness	0.432 mm
Jacket (Insulation) Thickness	0.017 in
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Ratings	UL Style CMR
Voltage	300 V
Wire Gauge	18 AWG

Part	Jacket Color	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Length [x]	Length [x]	Jacket (Insulation) Material	Ratings	Wire Gauge	Features	Conductor Insulation	Conductor Strand	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Voltage	Length	Length
Belden Inc. 2285R 008500	Gray	2	0.432 mm	0.017 in	Multi-Conductor	500 '	152.4 m	Poly-Vinyl Chloride (PVC) Riser	UL Style CMR	18 AWG	Rip Cord	Polypropylene (PP)	Solid	3.63 mm	0.143 in	Copper Bare	300 V
Belden Inc. 2285R 0081000	Gray	2	0.432 mm	0.017 in	Multi-Conductor			Poly-Vinyl Chloride (PVC) Riser	UL Style CMR	18 AWG	Rip Cord	Polypropylene (PP)	Solid	3.63 mm	0.143 in	Copper Bare	300 V	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.27

General part information

2 Conductor Multi-Conductor Cable Gray 18 AWG 1000.0' (304.8m)
