TMCM-1260-CABLE
ActiveAnalog Devices Inc./Maxim Integrated

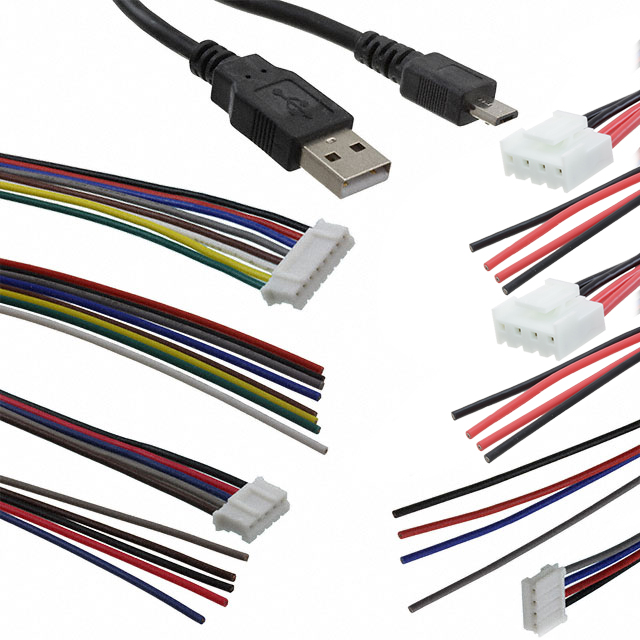

CABLE LOOM FOR TMCM-1260
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMCM-1260-CABLE
ActiveAnalog Devices Inc./Maxim Integrated
CABLE LOOM FOR TMCM-1260
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMCM-1260-CABLE | TMCM-1260 Series |
|---|---|---|
| Accessory Type | Cable Assembly | Cable Assembly |
| Control / Drive Type | - | Bipolar, Stepper |
| Current - Output | - | 6 A |
| For Use With/Related Products | TMCM-1260 Series | TMCM-1260 Series |
| Interface | - | CAN, USB, RS-485 |
| Motor Type | - | Stepper |
| Mounting Type | - | Chassis Mount |
| Number of Motors | - | 2 |
| Operating Temperature | - | -30 ░C |
| Operating Temperature | - | 40 °C |
| Specifications | 200 mm | 200 mm |
| Type | - | Board |
| Usage | Communications | Communications |
| Voltage - Supply | - | 54 VDC |
| Voltage - Supply | - | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.13 | |
TMCM-1260 Series
CABLE LOOM FOR TMCM-1260
| Part | Specifications | Accessory Type | Usage | For Use With/Related Products | Control / Drive Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Motors | Voltage - Supply [Max] | Voltage - Supply [Min] | Type | Interface | Current - Output | Motor Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMCM-1260-CABLE | 200 mm | Cable Assembly | Communications | TMCM-1260 Series | |||||||||||
Analog Devices Inc./Maxim Integrated TMCM-1260-CANOPEN | Bipolar, Stepper | -30 ░C | 40 °C | 2 | 54 VDC | 12 V | Board | CAN, RS-485, USB | 6 A | Stepper | Chassis Mount | ||||
Analog Devices Inc./Maxim Integrated TMCM-1260-TMCL | Bipolar, Stepper | -30 ░C | 40 °C | 54 VDC | 12 V | Board | CAN, RS-485, USB | 6 A | Stepper | Chassis Mount |
Description
General part information
TMCM-1260 Series
Cable Assembly 200mm
Documents
Technical documentation and resources
