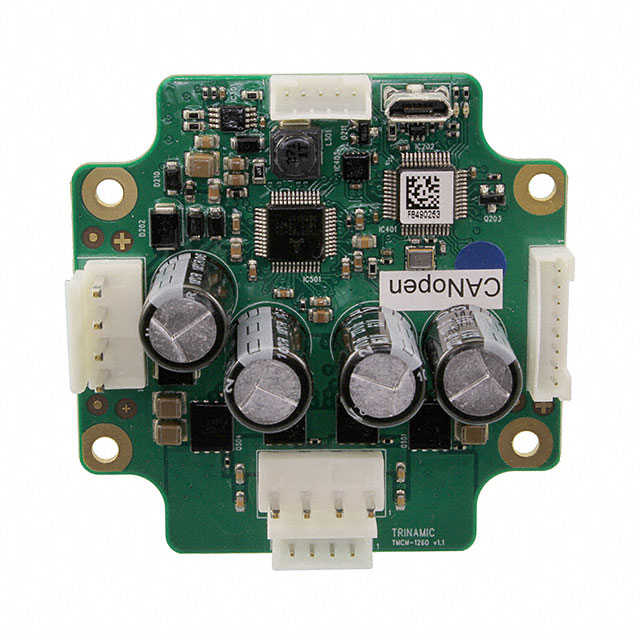

TMCM-1260-CANOPEN
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER CONTROLLER/DRIVER 6A 12-
Deep-Dive with AI
Search across all available documentation for this part.
TMCM-1260-CANOPEN
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER CONTROLLER/DRIVER 6A 12-
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMCM-1260-CANOPEN | TMCM-1260 Series |
|---|---|---|
| Accessory Type | - | Cable Assembly |
| Control / Drive Type | Bipolar, Stepper | Bipolar, Stepper |
| Current - Output | 6 A | 6 A |
| For Use With/Related Products | - | TMCM-1260 Series |
| Interface | CAN, USB, RS-485 | CAN, USB, RS-485 |
| Motor Type | Stepper | Stepper |
| Mounting Type | Chassis Mount | Chassis Mount |
| Number of Motors | 2 | 2 |
| Operating Temperature [Max] | 40 °C | 40 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Specifications | - | 200 mm |
| Type | Board | Board |
| Usage | - | Communications |
| Voltage - Supply [Max] | 54 VDC | 54 VDC |
| Voltage - Supply [Min] | 12 V | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 265.07 | |
| 10 | $ 229.25 | |||
TMCM-1260 Series
CABLE LOOM FOR TMCM-1260
| Part | Specifications | Accessory Type | Usage | For Use With/Related Products | Control / Drive Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Motors | Voltage - Supply [Max] | Voltage - Supply [Min] | Type | Interface | Current - Output | Motor Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMCM-1260-CABLE | 200 mm | Cable Assembly | Communications | TMCM-1260 Series | |||||||||||
Analog Devices Inc./Maxim Integrated TMCM-1260-CANOPEN | Bipolar, Stepper | -30 ░C | 40 °C | 2 | 54 VDC | 12 V | Board | CAN, RS-485, USB | 6 A | Stepper | Chassis Mount | ||||
Analog Devices Inc./Maxim Integrated TMCM-1260-TMCL | Bipolar, Stepper | -30 ░C | 40 °C | 54 VDC | 12 V | Board | CAN, RS-485, USB | 6 A | Stepper | Chassis Mount |
Description
General part information
TMCM-1260 Series
Stepper, Bipolar 12 ~ 54VDC Supply 6A Load
