Q-0E0360008001M

Active

Amphenol Custom Cable

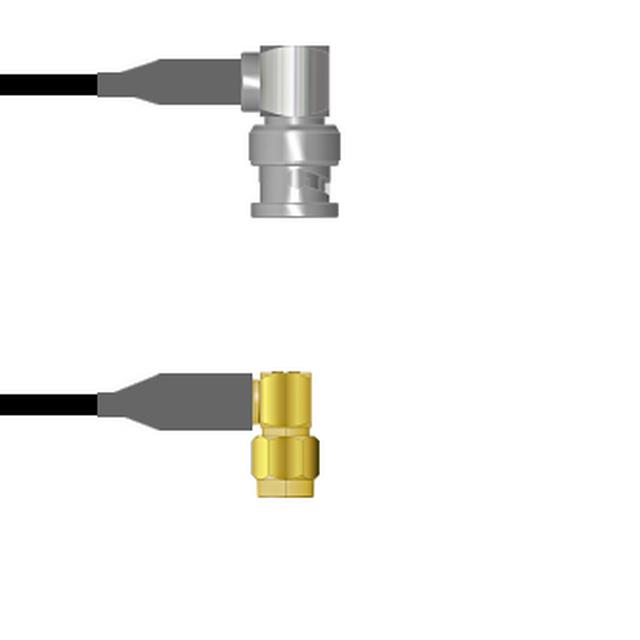

CBL ASSY BNC-SMA PLUG-PLUG 3.3'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0E0360008001M

Active

Amphenol Custom Cable

CBL ASSY BNC-SMA PLUG-PLUG 3.3'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0E0360008001M

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMA Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	1 m
Length	3.3 ft
Length	39.4 in
Overall Impedance	50 Ohms
Style	BNC to SMA

Q-0E0360 Series

Part	1st Contact Gender	Features	Style	1st Connector	Color	2nd Contact Gender	Frequency - Max [Max]	Overall Impedance	2nd Connector	Length	Length	Length	1st Connector Mounting Type	2nd Connector Mounting Type	Cable Type	Length [x]	Length [x]
Amphenol Custom Cable Q-0E0360008048i	Male	Shielded	BNC to SMA	BNC Plug Right Angle	Black	Male	4 GHz	50 Ohms	SMA Plug Right Angle	1200 mm	4 ft	48 in	Free Hanging (In-Line)	Free Hanging (In-Line)	RG-58
Amphenol Custom Cable Q-0E0360008108i	Male	Shielded	BNC to SMA	BNC Plug Right Angle	Black	Male	4 GHz	50 Ohms	SMA Plug Right Angle	2.7 m	9 ft	108 in	Free Hanging (In-Line)	Free Hanging (In-Line)	RG-58
Amphenol Custom Cable Q-0E0360008024i	Male	Shielded	BNC to SMA	BNC Plug Right Angle	Black	Male	4 GHz	50 Ohms	SMA Plug Right Angle	609.6 mm		24 "	Free Hanging (In-Line)	Free Hanging (In-Line)	RG-58
Amphenol Custom Cable Q-0E0360008.75M	Male	Shielded	BNC to SMA	BNC Plug Right Angle	Black	Male	4 GHz	50 Ohms	SMA Plug Right Angle	750 mm		29.53 "	Free Hanging (In-Line)	Free Hanging (In-Line)	RG-58
Amphenol Custom Cable Q-0E0360008012i	Male	Shielded	BNC to SMA	BNC Plug Right Angle	Black	Male	4 GHz	50 Ohms	SMA Plug Right Angle	304.8 mm		12 "	Free Hanging (In-Line)	Free Hanging (In-Line)	RG-58
Amphenol Custom Cable Q-0E0360008036i	Male	Shielded	BNC to SMA	BNC Plug Right Angle	Black	Male	4 GHz	50 Ohms	SMA Plug Right Angle	91.44 cm		36 in	Free Hanging (In-Line)	Free Hanging (In-Line)	RG-58
Amphenol Custom Cable Q-0E0360008072i	Male	Shielded	BNC to SMA	BNC Plug Right Angle	Black	Male	4 GHz	50 Ohms	SMA Plug Right Angle	1.8 m	6 ft	72 in	Free Hanging (In-Line)	Free Hanging (In-Line)	RG-58
Amphenol Custom Cable Q-0E0360008001M	Male	Shielded	BNC to SMA	BNC Plug Right Angle	Black	Male	4 GHz	50 Ohms	SMA Plug Right Angle	1 m	3.3 ft	39.4 in	Free Hanging (In-Line)	Free Hanging (In-Line)	RG-58
Amphenol Custom Cable Q-0E0360008.25M	Male	Shielded	BNC to SMA	BNC Plug Right Angle	Black	Male	4 GHz	50 Ohms	SMA Plug Right Angle				Free Hanging (In-Line)	Free Hanging (In-Line)	RG-58	9.843 "	250 mm
Amphenol Custom Cable Q-0E0360008060i	Male	Shielded	BNC to SMA	BNC Plug Right Angle	Black	Male	4 GHz	50 Ohms	SMA Plug Right Angle	1.5 m	5 ft	5 '	Free Hanging (In-Line)	Free Hanging (In-Line)	RG-58

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 110.86
		25	$ 108.69
		50	$ 106.52
		100	$ 104.35
		250	$ 102.19

Description

General part information

Q-0E0360 Series

Cable Assembly Coaxial BNC to SMA RG-58 39.4" (1.0m) 3.3'

Documents

Technical documentation and resources

No documents available
