6364306-1

Active

TE Connectivity Raychem Cable Protection

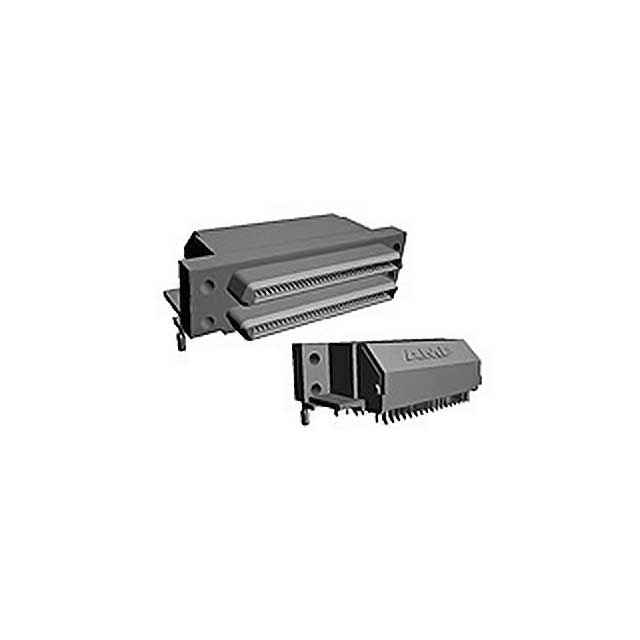

.8MM CHAMP STACK ASSY W/COVER

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

.8MM CHAMP STACK ASSY W/COVER

Technical Specifications

Parameters and characteristics for this part

Specification	6364306-1

Connector Style	Outer Shroud Contacts
Connector Type	Stacked
Connector Type	2 Plugs
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Flange Feature	Housing/Shell
Flange Feature	2.6 M
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	68
Number of Rows	2
Termination	Solder

Part	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Termination	Flange Feature	Flange Feature	Number of Rows	Number of Positions	Mounting Type	Connector Style	Connector Type	Connector Type	Shielding	Primary Material	Material [custom]	Material [custom]	Cable Type	Features	Cable Exit	Accessory Type	Color	For Use With/Related Products	Length - Below Head	Length - Below Head	Thread Size
TE Connectivity Raychem Cable Protection 6364306-1	0.76 Ám	30 Áin	Gold	Solder	Housing/Shell	2.6 M	2	68	Panel Mount Right Angle Through Hole	Outer Shroud Contacts	Stacked	2 Plugs
TE Connectivity Raychem Cable Protection 787229-1								68					Shielded	Metal	Plastic Steel	Metal	Round	Spring Lock	180 °	Two Piece Backshell and Cover	Black
TE Connectivity Raychem Cable Protection 5787973-1	0.76 Ám	30 Áin	Gold	Solder	Housing/Shell	2.6 M	2	36	Panel Mount Right Angle Through Hole	Outer Shroud Contacts	Receptacle							Board Lock Shielded
TE Connectivity Raychem Cable Protection 787004-3																				Jackscrew Socket Slotted		CHAMP D-Sub Connectors	6 mm	0.236 in	M2 Screw M2 Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	250	$ 25.43
Newark	Each	250	$ 24.80

General part information

68 Position D-Shaped Connector, Receptacle, Cable-to-Board, Panel Mount & Board Mount, .8 mm [.031 in] Centerline, CHAMP .8 mm Connector
