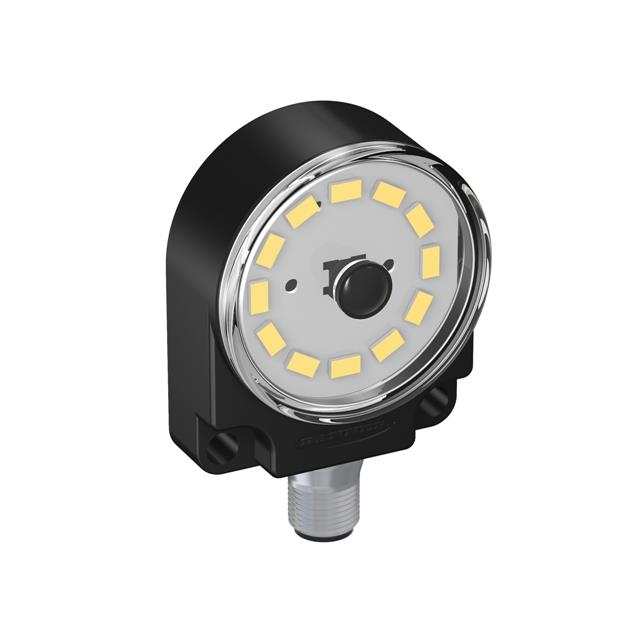

WL50-2PB

Obsolete

BANNER ENGINEERING

WORK LIGHT 50MM DIA

Search across all available documentation for this part.

Obsolete

BANNER ENGINEERING

WORK LIGHT 50MM DIA

Technical Specifications

Parameters and characteristics for this part

Part	Features	Termination Style	Illumination Color	Voltage - Supply [Min]	Voltage - Supply [Max]	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Luminous Flux	Housing Material	Profile (W x H) [custom]	Profile (W x H) [custom]	Lens Type
BANNER ENGINEERING WL50-2PBQ	On/Off Switching	Connector (M12)	Cool White	12 V	30 VDC	CE cULus	-40 °C	50 °C	IP67 - Dust Tight Waterproof	185 lm	Polycarbonate (PC)	1.95 in	50 mm	Clear Flat
BANNER ENGINEERING WL50-2PWMQ	Dimmable	Connector (M12)	Cool White	12 V	30 VDC	CE cULus	-40 °C	50 °C	IP67 IP69K	185 lm	Polycarbonate (PC)	1.95 in	50 mm	Clear Flat
BANNER ENGINEERING WL50-2Q		Connector (M12)	Cool White	12 V	30 VDC	CE cULus	-40 °C	50 °C	IP67 IP69K	185 lm	Polycarbonate (PC)	1.95 in	50 mm	Clear Flat
BANNER ENGINEERING WL50-2PB	On/Off Switching	Cable Leads	Cool White	12 V	30 VDC	CE cULus	-40 °C	50 °C	IP67 - Dust Tight Waterproof	185 lm	Polycarbonate (PC)	1.95 in	50 mm	Clear Flat

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

WORK LIGHT 50MM DIA

Technical documentation and resources
