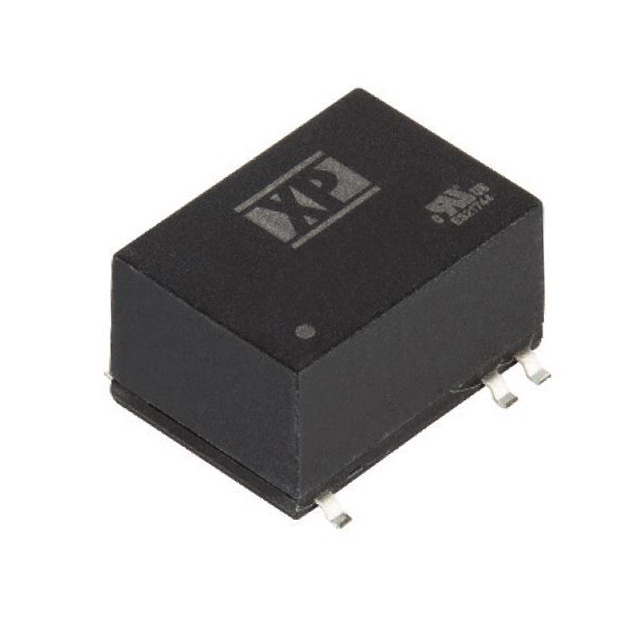

ISM0105S05

Active

XP POWER

ISOLATED SURFACE MOUNT DC/DC CONVERTER, MEDICAL, 1:1, 1 W, 1 OUTPUT, 5 V, 200 MA

Search across all available documentation for this part.

Active

XP POWER

ISOLATED SURFACE MOUNT DC/DC CONVERTER, MEDICAL, 1:1, 1 W, 1 OUTPUT, 5 V, 200 MA

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Number of Outputs	Voltage - Output 1	Voltage - Isolation	Package / Case	Efficiency	Type	Voltage - Input (Max) [Max]	Mounting Type	Features	Applications	Operating Temperature [Min]	Operating Temperature [Max]
XP POWER ISM0105S05	18.9 mm	10.5 mm	0.74 in	13.7 mm	0.41 "	0.54 "	4.5 V	200 mA	1	5 V	4000 V	14-SMD Module 6 Leads	76 %	Isolated Module	5.5 V	Surface Mount	SCP	Medical	-40 °C	95 °C
XP POWER ISM0105S15	18.9 mm	10.5 mm	0.74 in	13.7 mm	0.41 "	0.54 "	4.5 V	68 mA	1	15 V	4000 V	14-SMD Module 6 Leads	83 %	Isolated Module	5.5 V	Surface Mount	SCP	Medical	-40 °C	95 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
