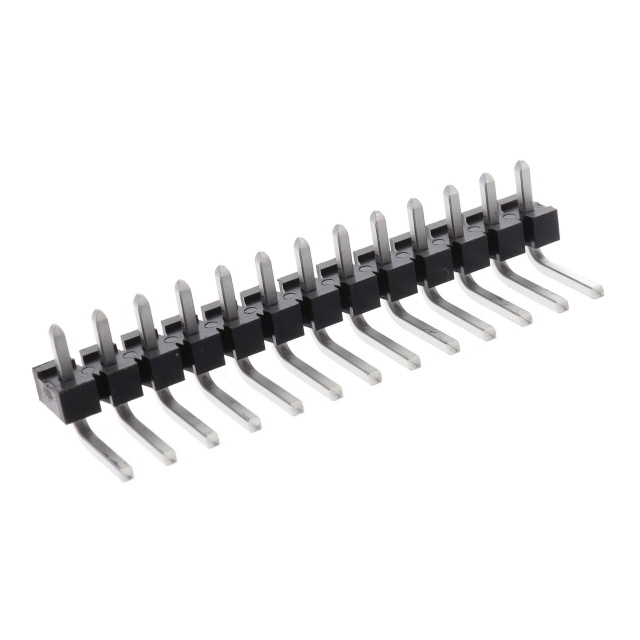

FWJ-13-02-T-S-RA

Active

Samtec Inc.

CONN HEADER R/A 13POS 3.96MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FWJ-13-02-T-S-RA

Active

Samtec Inc.

CONN HEADER R/A 13POS 3.96MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FWJ-13-02-T-S-RA

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	8.13 mm
Contact Length - Mating	0.32 in
Contact Length - Post	4.45 mm
Contact Length - Post	0.175 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	6.35 mm
Insulation Height	0.25 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	13
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	600 VAC, 845 VDC

FWJ-13 Series

Part	Mounting Type	Number of Positions Loaded	Contact Finish - Post	Shrouding	Contact Length - Mating	Contact Length - Mating	Number of Positions	Insulation Color	Voltage Rating	Connector Type	Termination	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Contact Shape	Material Flammability Rating	Contact Material	Contact Type	Fastening Type	Number of Rows	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Contact Length - Mating [x]	Contact Length - Mating [x]	Overall Contact Length	Overall Contact Length	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. FWJ-13-04-T-S-RA	Through Hole Right Angle	All	Tin	Unshrouded	13.56 mm	0.534 in	13	Black	600 VAC 845 VDC	Header	Solder	0.156 in	3.96 mm	0.156 in	3.96 mm	Square	UL94 V-0	Phosphor Bronze	Male Pin	Push-Pull	1	6.35 mm	0.25 in	105 ░C	-55 °C	Polybutylene Terephthalate (PBT)
Samtec Inc. FWJ-13-02-T-S	Through Hole	All	Tin	Unshrouded			13	Black	600 VAC 845 VDC	Header	Solder	0.175 in	4.45 mm	0.156 in	3.96 mm	Square	UL94 V-0	Phosphor Bronze	Male Pin	Push-Pull	1	3.18 mm	0.125 in	105 ░C	-55 °C	Polybutylene Terephthalate (PBT)	0.5 in	12.7 mm	0.8 in	20.32 mm
Samtec Inc. FWJ-13-02-T-S-RA	Through Hole Right Angle	All	Tin	Unshrouded	8.13 mm	0.32 in	13	Black	600 VAC 845 VDC	Header	Solder	0.175 in	4.45 mm	0.156 in	3.96 mm	Square	UL94 V-0	Phosphor Bronze	Male Pin	Push-Pull	1	6.35 mm	0.25 in	105 ░C	-55 °C	Polybutylene Terephthalate (PBT)
Samtec Inc. FWJ-13-05-T-S	Through Hole	All	Tin	Unshrouded	3.81 mm	0.15 in	13	Black	600 VAC 845 VDC	Header	Solder			0.156 in	3.96 mm	Square	UL94 V-0	Phosphor Bronze	Male Pin	Push-Pull	1	3.18 mm	0.125 in	105 ░C	-55 °C	Polybutylene Terephthalate (PBT)			0.75 in	19.05 mm	12.07 mm	0.475 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.56
		10	$ 2.72
		100	$ 2.11
		500	$ 2.09

Description

General part information

FWJ-13 Series

Connector Header Through Hole, Right Angle 13 position 0.156" (3.96mm)
