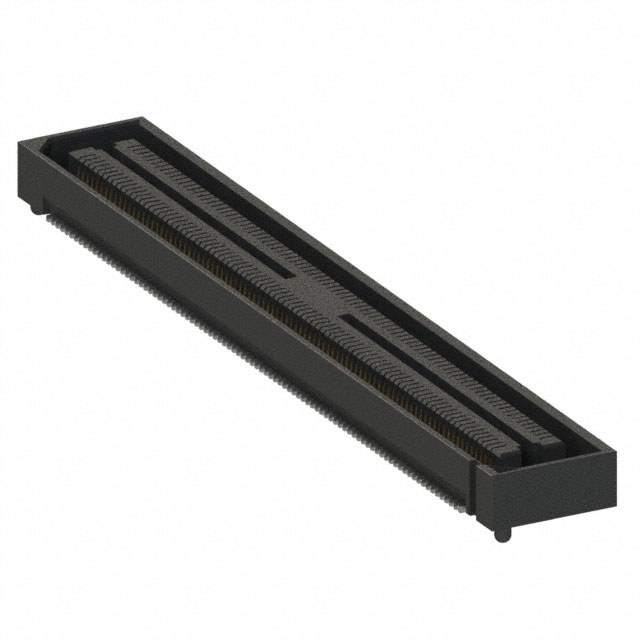

BSH-090-01-L-D-A-TR

Active

Samtec Inc.

MEZZANINE CONNECTOR, RECEPTACLE, 0.5 MM, 2 ROWS, 180 CONTACTS, SURFACE MOUNT, PHOSPHOR BRONZE

Search across all available documentation for this part.

Active

Samtec Inc.

MEZZANINE CONNECTOR, RECEPTACLE, 0.5 MM, 2 ROWS, 180 CONTACTS, SURFACE MOUNT, PHOSPHOR BRONZE

Technical Specifications

Parameters and characteristics for this part

Specification	BSH-090-01-L-D-A-TR

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide
Height Above Board	3.25 mm
Height Above Board	0.128 in
Mated Stacking Heights	5 mm
Mounting Type	Surface Mount
Number of Positions	180
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Number of Positions	Features	Mounting Type	Contact Finish	Height Above Board	Height Above Board	Number of Rows	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]
Samtec Inc. BSH-090-01-H-D-A	Socket Center Strip Contacts	0.76 Ám	30 Áin	0.5 mm	0.02 in	180	Board Guide	Surface Mount	Gold	3.25 mm	0.128 in	2	5 mm
Samtec Inc. BSH-090-01-L-D-TR	Socket Center Strip Contacts	0.25 Ám	10 Áin	0.5 mm	0.02 in	180		Surface Mount	Gold	3.25 mm	0.128 in	2	5 mm
Samtec Inc. BSH-090-01-F-D-A-TR	Socket Center Strip Contacts	0.076 Ám	3 Áin	0.5 mm	0.02 in	180	Board Guide	Surface Mount	Gold	3.25 mm	0.128 in	2	5 mm
Samtec Inc. BSH-090-01-F-D	Socket Center Strip Contacts	0.076 Ám	3 Áin	0.5 mm	0.02 in	180		Surface Mount	Gold	3.25 mm	0.128 in	2	5 mm
Samtec Inc. BSH-090-01-H-D	Socket Center Strip Contacts	0.76 Ám	30 Áin	0.5 mm	0.02 in	180		Surface Mount	Gold	3.25 mm	0.128 in	2	5 mm
Samtec Inc. BSH-090-01-F-D-RA-WT-GP	Socket Center Strip Contacts	0.076 Ám	3 Áin	0.5 mm	0.02 in	180	Board Guide Solder Retention	Surface Mount Right Angle	Gold			2		0.285 in	7.24 mm
Samtec Inc. BSH-090-01-L-D-RA-WT-GP	Socket Center Strip Contacts	0.25 Ám	10 Áin	0.5 mm	0.02 in	180	Board Guide Solder Retention	Surface Mount Right Angle	Gold			2		0.285 in	7.24 mm
Samtec Inc. BSH-090-01-L-D-A-TR	Socket Center Strip Contacts	0.25 Ám	10 Áin	0.5 mm	0.02 in	180	Board Guide	Surface Mount	Gold	3.25 mm	0.128 in	2	5 mm
