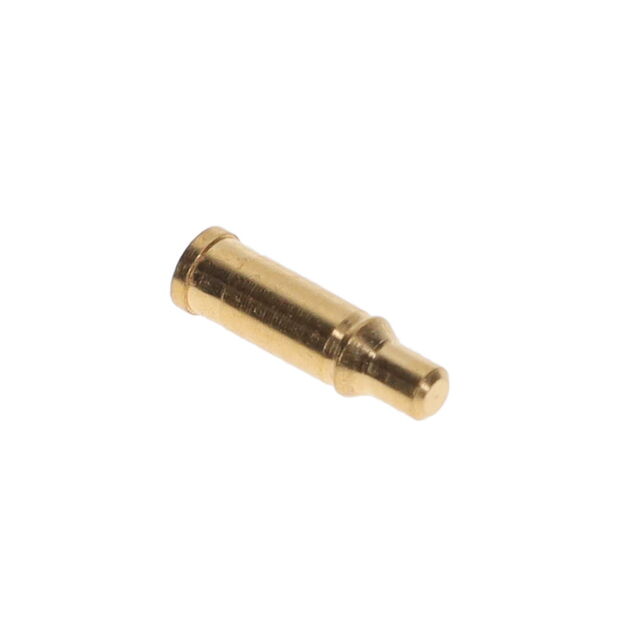

1385-0-15-15-43-14-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Technical Specifications

Parameters and characteristics for this part

Part	Termination	Contact Finish Thickness	Contact Finish Thickness	Flange Diameter	Flange Diameter	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Tail Type	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Contact Finish
Mill-Max Manufacturing Corp. 1385-0-15-80-43-27-10-0	Surface Mount	0.76 Ám	30 Áin	1.47 mm	0.058 in	-55 °C	125 °C	Beryllium Copper	No Tail	0.025 "	0.64 mm	0.015 "	0.38 mm	Gold
Mill-Max Manufacturing Corp. 1385-0-15-01-43-27-10-0	Surface Mount	0.76 Ám	30 Áin	1.47 mm	0.058 in	-55 °C	125 °C	Beryllium Copper	No Tail	0.025 "	0.64 mm	0.015 "	0.38 mm	Gold
Mill-Max Manufacturing Corp. 1385-0-15-15-43-14-10-0	Surface Mount	0.25 Ám	10 Áin	1.47 mm	0.058 in	-55 °C	125 °C	Beryllium Copper	No Tail	0.025 "	0.64 mm	0.015 "	0.38 mm	Gold
Mill-Max Manufacturing Corp. 1385-0-15-80-43-14-10-0	Surface Mount	0.25 Ám	10 Áin	1.47 mm	0.058 in	-55 °C	125 °C	Beryllium Copper	No Tail	0.025 "	0.64 mm	0.015 "	0.38 mm	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) No Tail Surface Mount

Technical documentation and resources

No documents available
