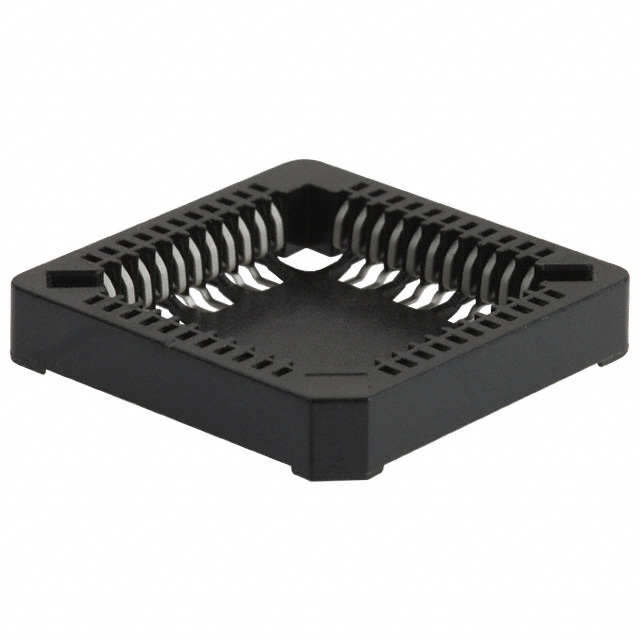

8444-21B1-RK-TP
Active3M (TC)
IC & COMPONENT SOCKET, 44 CONTACTS, PLCC SOCKET, 1.27 MM, 8400 SERIES, PHOSPHOR BRONZE
Deep-Dive with AI
Search across all available documentation for this part.
8444-21B1-RK-TP
Active3M (TC)
IC & COMPONENT SOCKET, 44 CONTACTS, PLCC SOCKET, 1.27 MM, 8400 SERIES, PHOSPHOR BRONZE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 8444-21B1-RK-TP |
|---|---|
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | 160 µin |
| Contact Finish Thickness - Post | 4.06 µm |
| Contact Material - Mating | Copper Alloy |
| Contact Material - Post [custom] | Copper Alloy |
| Current Rating (Amps) | 1 A |
| Features | Closed Frame |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions or Pins (Grid) | 44 |
| Number of Positions or Pins (Grid) [custom] | 4, 11 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Pitch - Post | 1.27 mm |
| Pitch - Post | 0.05 in |
| Termination | Solder |
| Termination Post Length [x] | 3.35 mm |
| Termination Post Length [x] | 0.132 in |
| Type | PLCC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.16 | |
| 10 | $ 1.83 | |||
| 26 | $ 1.72 | |||
| 52 | $ 1.63 | |||
| 104 | $ 1.56 | |||
| 260 | $ 1.46 | |||
| 520 | $ 1.39 | |||
| 1014 | $ 1.32 | |||
| 2522 | $ 1.24 | |||
Description
General part information
8444 Series
44 (4 x 11) Pos PLCC Socket Tin Surface Mount
