082-64-RFX
ActiveAmphenol RF
RF / COAXIAL ADAPTER, N, PLUG, N, JACK, RIGHT ANGLE ADAPTER, 50 OHM
Deep-Dive with AI
DocumentsDrawing EN
Technical Specifications
Parameters and characteristics for this part
| Specification | 082-64-RFX |
|---|---|
| Adapter Series | N to N |
| Adapter Type | Plug to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass, Phosphor Bronze |
| Center Contact Plating | Gold |
| Conversion Type | Same Series |
| Convert From (Adapter End) | N Jack, Female Socket |
| Convert To (Adapter End) | Male Pin, N Plug |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 11 GHz |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Style | Right Angle |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
082-64 Series

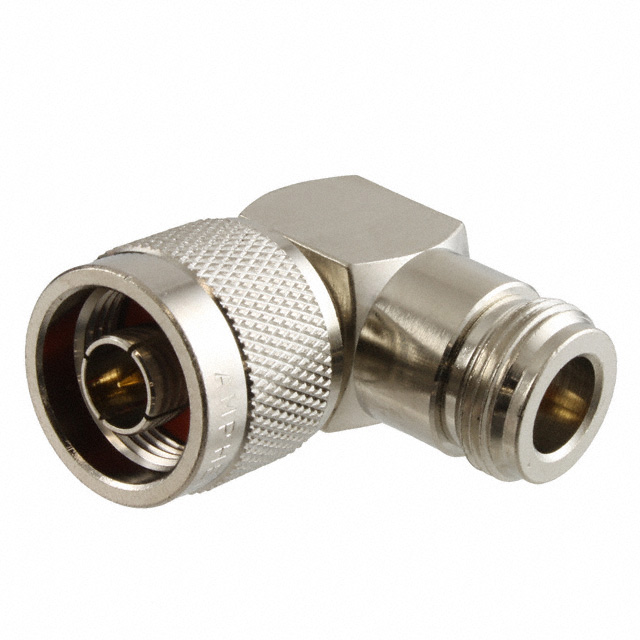

The 82-64-RFX is a N-type Jack to N-type Plug Right Angle Adapter with gold-plated phosphor bronze contacts. Body made up of brass with nickel-plated finish and PTFE insulator. This adapter is commonly used in applications requiring 2 dissimilar RF interfaces to be connected.
