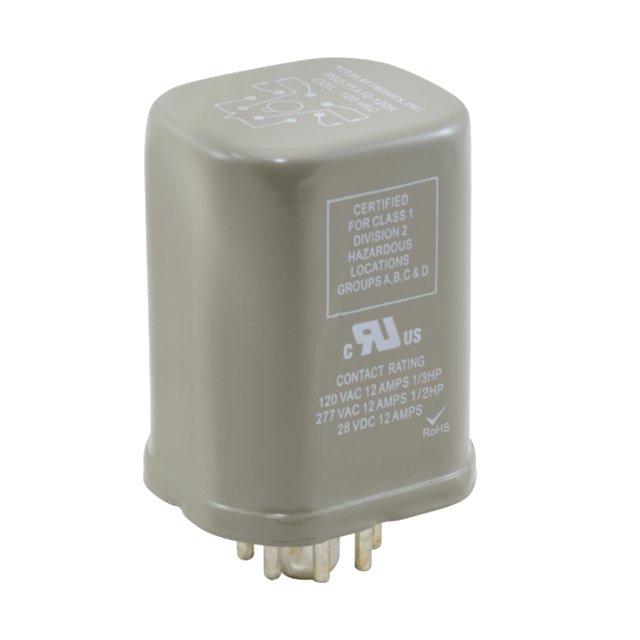

R02-11A10-120H

Active

NTE Electronics, Inc

RELAY GEN PURPOSE DPDT 10A 120V

Search across all available documentation for this part.

Active

NTE Electronics, Inc

RELAY GEN PURPOSE DPDT 10A 120V

Technical Specifications

Parameters and characteristics for this part

Specification	R02-11A10-120H

Coil Voltage	120 VAC
Contact Form	DPDT (2 Form C)
Contact Rating (Current)	10 A
Operate Time	25 ms
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Relay Type	General Purpose
Release Time	20 ms
Termination Style	Plug In, 8 Pin (Octal)

Part	Contact Form	Release Time	Contact Rating (Current)	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Termination Style	Relay Type	Coil Voltage	Operate Time	Operating Temperature [Min]	Operating Temperature [Max]
NTE Electronics, Inc R02-11A10-240	DPDT (2 Form C)	20 ms	10 A	-10 °C	50 °C	Plug In 8 Pin (Octal)	General Purpose	240 VAC	25 ms
NTE Electronics, Inc R02-11D10-12	DPDT (2 Form C)	20 ms	10 A			Plug In 8 Pin (Octal)	General Purpose	12 VDC	25 ms	-10 °C	60 °C
NTE Electronics, Inc R02-11A10-120H	DPDT (2 Form C)	20 ms	10 A	-10 °C	50 °C	Plug In 8 Pin (Octal)	General Purpose	120 VAC	25 ms
NTE Electronics, Inc R02-11A10-12	DPDT (2 Form C)	20 ms	10 A	-10 °C	50 °C	Plug In 8 Pin (Octal)	General Purpose	12 VAC/DC	25 ms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay DPDT (2 Form C) 120VAC Coil
