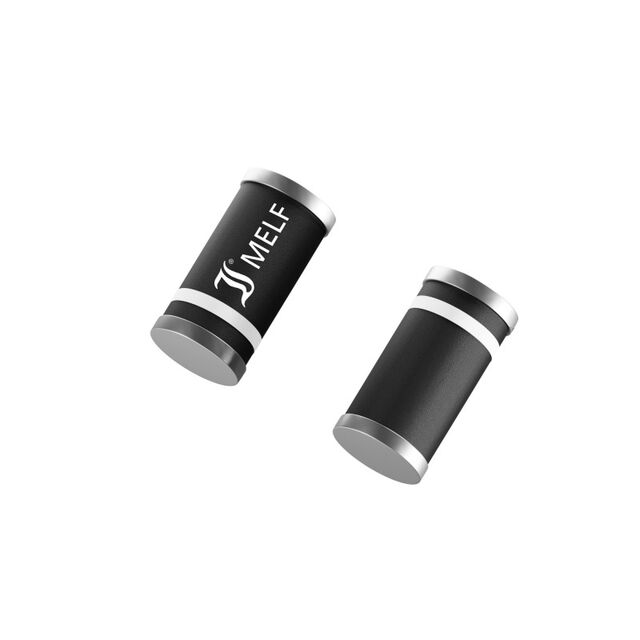

SUF4001-CT

Active

Diotec Semiconductor

DIODE GEN PURP 50V 1A DO213AB

Search across all available documentation for this part.

Active

Diotec Semiconductor

DIODE GEN PURP 50V 1A DO213AB

Technical Specifications

Parameters and characteristics for this part

Specification	SUF4001-CT

Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	5 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-50 °C
Package / Case	DO-213AB, MELF
Reverse Recovery Time (trr)	50 ns
Speed	200 mA, 500 ns
Supplier Device Package	DO-213AB
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	50 V
Voltage - Forward (Vf) (Max) @ If	1 V

DIODE GEN PURP 50V 1A DO213AB

Part	Supplier Device Package	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Speed	Voltage - Forward (Vf) (Max) @ If	Package / Case	Current - Average Rectified (Io)	Reverse Recovery Time (trr)	Technology	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]
Diotec Semiconductor SUF4001-CT	DO-213AB	5 µA	-50 °C	175 ░C	200 mA, 500 ns	1 V	DO-213AB, MELF	1 A	50 ns	Standard	Surface Mount	50 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 50 V 1A Surface Mount DO-213AB

Technical documentation and resources
