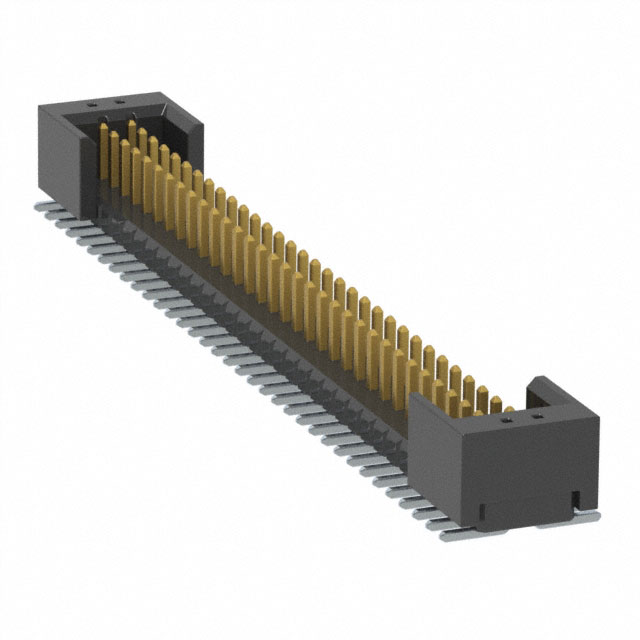

FTM-131-02-F-DV-S

Active

Samtec Inc.

CONN HEADER SMD 62POS 1MM

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HEADER SMD 62POS 1MM

Technical Specifications

Parameters and characteristics for this part

Specification	FTM-131-02-F-DV-S

Connector Type	Cuttable, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Length - Mating [x]	1.9 mm
Contact Length - Mating [x]	0.075 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.8 A per Contact
Fastening Type	Push-Pull
Features	End Shrouds
Insulation Color	Black
Insulation Height	0.038 in
Insulation Height	0.97 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	62
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Row Spacing - Mating	0.039 "
Row Spacing - Mating	1 mm
Shrouding	Unshrouded
Termination	Solder

Part	Number of Rows	Shrouding	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Mating	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Material	Number of Positions	Contact Length - Mating [x]	Contact Length - Mating [x]	Number of Positions Loaded	Termination	Insulation Material	Mounting Type	Insulation Color	Contact Shape	Fastening Type	Contact Finish - Post	Current Rating (Amps)	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features
Samtec Inc. FTM-131-02-F-DV	2	Unshrouded	0.039 "	1 mm	Gold	0.038 in	0.97 mm	0.039 in	1 mm	-55 °C	125 °C	Cuttable Header	Phosphor Bronze	62	1.9 mm	0.075 in	All	Solder	Liquid Crystal Polymer (LCP)	Surface Mount	Black	Square	Push-Pull	Tin	2.8 A per Contact	Male Pin	3 µin	0.076 µm
Samtec Inc. FTM-131-02-F-DV-S	2	Unshrouded	0.039 "	1 mm	Gold	0.038 in	0.97 mm	0.039 in	1 mm	-55 °C	125 °C	Cuttable Header	Phosphor Bronze	62	1.9 mm	0.075 in	All	Solder	Liquid Crystal Polymer (LCP)	Surface Mount	Black	Square	Push-Pull	Tin	2.8 A per Contact	Male Pin	3 µin	0.076 µm	End Shrouds

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	16	$ 9.29

General part information

Connector Header Surface Mount 62 position 0.039" (1.00mm)
