H3AAH-6418M

Active

Assmann WSW Components

IDC CBL - HHSC64H/AE64M/HHSC64H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHSC64H/AE64M/HHSC64H

Technical Specifications

Parameters and characteristics for this part

Part	Color	Shielding	Contact Finish Thickness	Contact Finish Thickness	Pitch - Connector	Pitch - Connector	Length	Length	Length	Cable Termination	Number of Positions	Pitch - Cable	Pitch - Cable	Connector Type	Contact Finish	Number of Rows	Length [x]	Length [x]
Assmann WSW Components H3AAH-6406M	Multiple Ribbon	Unshielded	15 µin	0.38 µm	0.1 in	2.54 mm	152.4 mm	6 "	0.5 '	IDC	64	0.05 "	1.27 mm	Socket to Socket	Gold	2
Assmann WSW Components H3AAH-6436G		Unshielded	15 µin	0.38 µm	0.1 in	2.54 mm				IDC	64	0.05 "	1.27 mm	Socket to Socket	Gold	2	3 ft	914.4 mm
Assmann WSW Components H3AAH-6418M	Multiple Ribbon	Unshielded	15 µin	0.38 µm	0.1 in	2.54 mm				IDC	64	0.05 "	1.27 mm	Socket to Socket	Gold	2	1.5 ft	457.2 mm
Assmann WSW Components H3AAH-6436M	Multiple Ribbon	Unshielded	15 µin	0.38 µm	0.1 in	2.54 mm				IDC	64	0.05 "	1.27 mm	Socket to Socket	Gold	2	3 ft	914.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

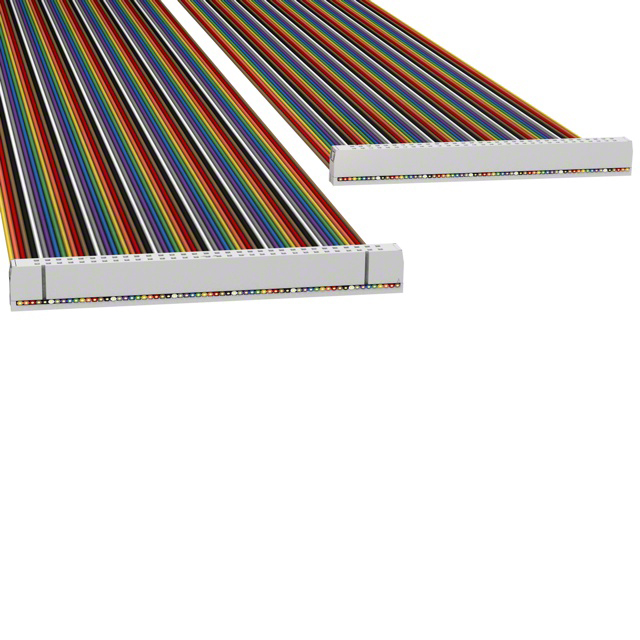

64 Position Cable Assembly Rectangular Socket to Socket 1.50' (457.20mm)
