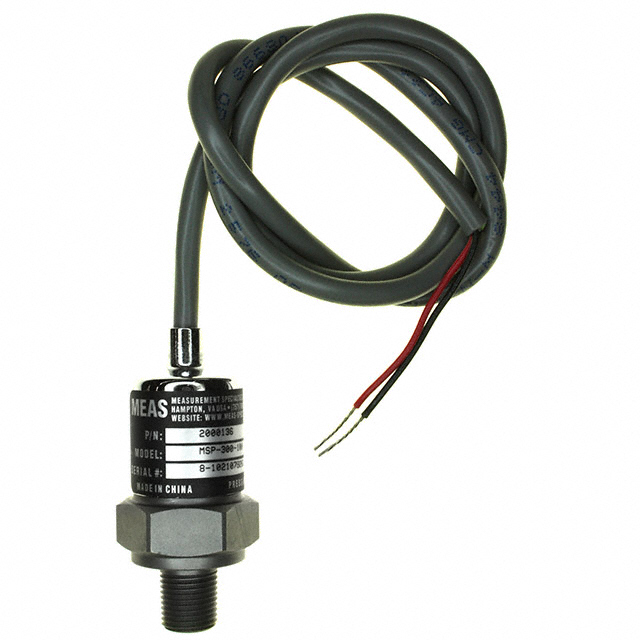

M3051-000006-100PG

Active

TE Connectivity Measurement Specialties

TRANSDUCER 4-20MA 100# PRES

Search across all available documentation for this part.

Active

TE Connectivity Measurement Specialties

TRANSDUCER 4-20MA 100# PRES

Technical Specifications

Parameters and characteristics for this part

Part	Output [Max]	Output [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Port Style	Output Type	Operating Pressure	Operating Pressure	Port Size [custom]	Port Size [x]	Port Size [x]	Port Size [custom]	Maximum Pressure [Max]	Maximum Pressure [Max]	Pressure Type	Accuracy	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Features
TE Connectivity Measurement Specialties M3051-000005-2K5PG	20 mA	4 mA	30 VDC	9 V	Cylinder Threaded	Threaded	Analog Current	2500 PSI	17236.89 kPa	NPT	0.25 "	6.35 mm	Male	5000 PSI	34473.79 kPa	Vented Gauge	1 %	Cable	85 °C	-20 C	Amplified Output Temperature Compensated
TE Connectivity Measurement Specialties M3051-000005-01KPG	20 mA	4 mA	30 VDC	9 V	Cylinder	Threaded	Analog Current	1000 PSI	6894.76 kPa	NPT	0.25 "	6.35 mm	Male	2000 PSI	13789.51 kPa	Vented Gauge	1 %	Cable	85 °C	-20 C	Amplified Output Temperature Compensated
TE Connectivity Measurement Specialties M3051-000006-100PG					Cylinder Threaded													Cable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 72.11

General part information

Pressure Sensor Cylinder, Threaded

Technical documentation and resources

No documents available
