FTMH-135-02-LM-DV-EC-A

Active

Samtec Inc.

CONN HEADER SMD 70POS 1MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet FTMH Series Other Related Documents 01 +1

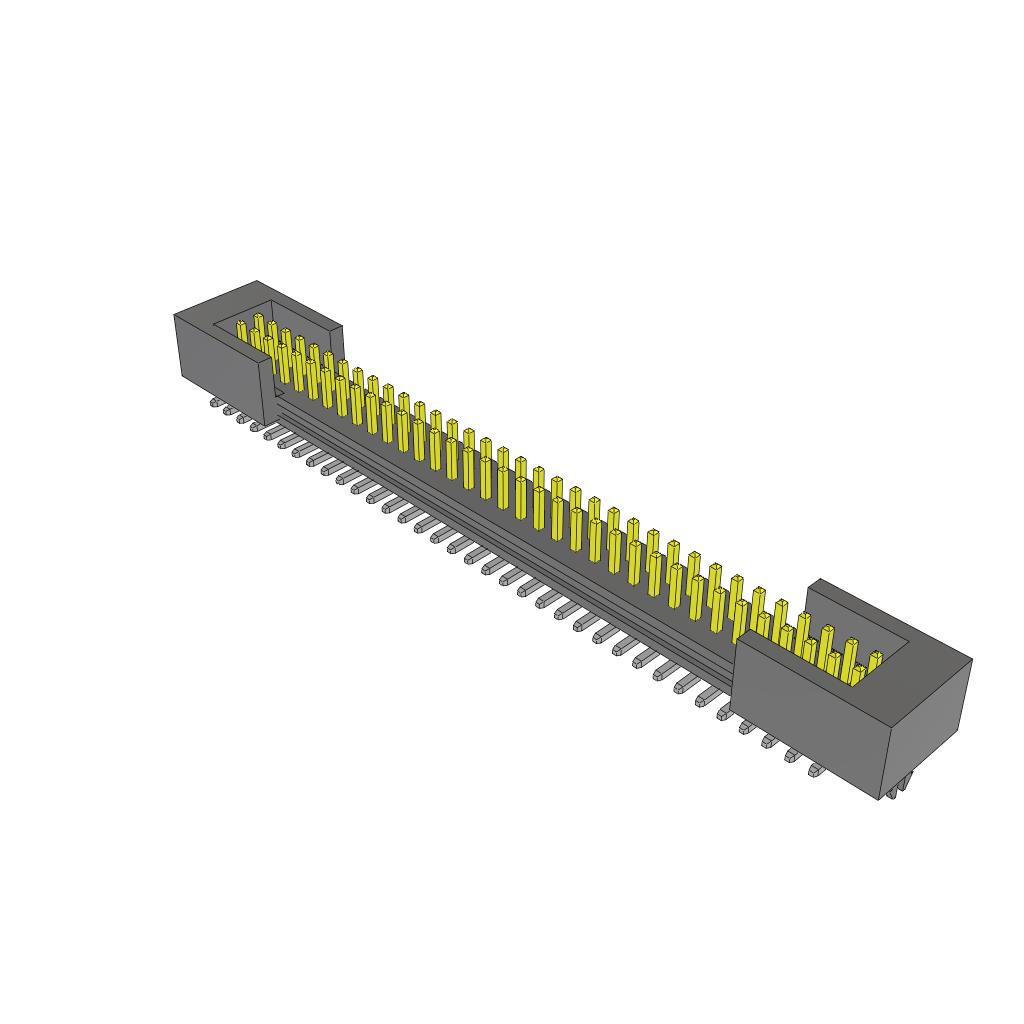

FTMH-135-02-LM-DV-EC-A

Active

Samtec Inc.

CONN HEADER SMD 70POS 1MM

Deep-Dive with AI

DocumentsDatasheet FTMH Series Other Related Documents 01 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FTMH-135-02-LM-DV-EC-A

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating [x]	1.9 mm
Contact Length - Mating [x]	0.075 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.8 A per Contact
Fastening Type	Push-Pull
Features	End Shrouds, Board Guide, Board Lock
Insulation Color	Black
Insulation Height	1.5 mm
Insulation Height	0.059 "
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	70
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Row Spacing - Mating	0.039 "
Row Spacing - Mating	1 mm
Shrouding	Unshrouded
Termination	Solder

FTMH-135 Series

Part	Contact Finish - Post	Connector Type	Contact Finish - Mating	Features	Pitch - Mating	Pitch - Mating	Contact Type	Mounting Type	Current Rating (Amps)	Termination	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Fastening Type	Number of Positions	Insulation Color	Contact Length - Mating [x]	Contact Length - Mating [x]	Shrouding	Insulation Material	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Number of Rows	Contact Material	Contact Length - Mating	Contact Length - Mating
Samtec Inc. FTMH-135-02-L-DV-A-P-TR	Tin	Header	Gold	Board Guide Pick and Place	0.039 in	1 mm	Male Pin	Surface Mount	2.8 A per Contact	Solder	0.039 "	1 mm	All	10 çin	0.25 çm	UL94 V-0	Push-Pull	70	Black	1.9 mm	0.075 in	Unshrouded	Liquid Crystal Polymer (LCP)	1.5 mm	0.059 "	-55 °C	125 °C	Square	2	Phosphor Bronze
Samtec Inc. FTMH-135-03-F-DV-ES	Tin	Header	Gold	End Shrouds	0.039 in	1 mm	Male Pin	Surface Mount	2.8 A per Contact	Solder	0.039 "	1 mm	All	3 µin	0.076 µm	UL94 V-0	Push-Pull	70	Black			Unshrouded	Liquid Crystal Polymer (LCP)	1.5 mm	0.059 "	-55 °C	125 °C	Square	2	Phosphor Bronze	0.065 in	1.65 mm
Samtec Inc. FTMH-135-02-L-DV-EC	Tin	Header	Gold	Board Lock End Shrouds	0.039 in	1 mm	Male Pin	Surface Mount	2.8 A per Contact	Solder	0.039 "	1 mm	All	10 çin	0.25 çm	UL94 V-0	Push-Pull	70	Black	1.9 mm	0.075 in	Unshrouded	Liquid Crystal Polymer (LCP)	1.5 mm	0.059 "	-55 °C	125 °C	Square	2	Phosphor Bronze
Samtec Inc. FTMH-135-03-F-DV-ES-P-TR	Tin	Header	Gold	End Shrouds Pick and Place	0.039 in	1 mm	Male Pin	Surface Mount	2.8 A per Contact	Solder	0.039 "	1 mm	All	3 µin	0.076 µm	UL94 V-0	Push-Pull	70	Black			Unshrouded	Liquid Crystal Polymer (LCP)	1.5 mm	0.059 "	-55 °C	125 °C	Square	2	Phosphor Bronze	0.065 in	1.65 mm
Samtec Inc. FTMH-135-02-L-DV-A	Tin	Header	Gold	End Shrouds	0.039 in	1 mm	Male Pin	Surface Mount	2.8 A per Contact	Solder	0.039 "	1 mm	All	10 çin	0.25 çm	UL94 V-0	Push-Pull	70	Black	1.9 mm	0.075 in	Unshrouded	Liquid Crystal Polymer (LCP)	1.5 mm	0.059 "	-55 °C	125 °C	Square	2	Phosphor Bronze
Samtec Inc. FTMH-135-03-FM-DV-ES-P-TR	Tin	Header	Gold	End Shrouds Pick and Place	0.039 in	1 mm	Male Pin	Surface Mount	2.8 A per Contact	Solder	0.039 "	1 mm	All	3 µin	0.076 µm	UL94 V-0	Push-Pull	70	Black			Unshrouded	Liquid Crystal Polymer (LCP)	1.5 mm	0.059 "	-55 °C	125 °C	Square	2	Phosphor Bronze	0.065 in	1.65 mm
Samtec Inc. FTMH-135-02-LM-DH-K	Tin	Header	Gold	Pick and Place	0.039 in	1 mm	Male Pin	Surface Mount Right Angle	2.8 A per Contact	Solder	0.039 "	1 mm	All	10 çin	0.25 çm	UL94 V-0	Push-Pull	70	Black	1.9 mm	0.075 in	Unshrouded	Liquid Crystal Polymer (LCP)	3.18 mm	0.125 in	-55 °C	125 °C	Square	2	Phosphor Bronze
Samtec Inc. FTMH-135-02-LM-DV-EC-A	Tin	Header	Gold	Board Guide Board Lock End Shrouds	0.039 in	1 mm	Male Pin	Surface Mount	2.8 A per Contact	Solder	0.039 "	1 mm	All	10 çin	0.25 çm	UL94 V-0	Push-Pull	70	Black	1.9 mm	0.075 in	Unshrouded	Liquid Crystal Polymer (LCP)	1.5 mm	0.059 "	-55 °C	125 °C	Square	2	Phosphor Bronze
Samtec Inc. FTMH-135-02-L-DH-K	Tin	Header	Gold	Pick and Place	0.039 in	1 mm	Male Pin	Surface Mount Right Angle	2.8 A per Contact	Solder	0.039 "	1 mm	All	10 çin	0.25 çm	UL94 V-0	Push-Pull	70	Black	1.9 mm	0.075 in	Unshrouded	Liquid Crystal Polymer (LCP)	3.18 mm	0.125 in	-55 °C	125 °C	Square	2	Phosphor Bronze
Samtec Inc. FTMH-135-03-FM-DV-ES	Tin	Header	Gold	End Shrouds	0.039 in	1 mm	Male Pin	Surface Mount	2.8 A per Contact	Solder	0.039 "	1 mm	All	3 µin	0.076 µm	UL94 V-0	Push-Pull	70	Black			Unshrouded	Liquid Crystal Polymer (LCP)	1.5 mm	0.059 "	-55 °C	125 °C	Square	2	Phosphor Bronze	0.065 in	1.65 mm
