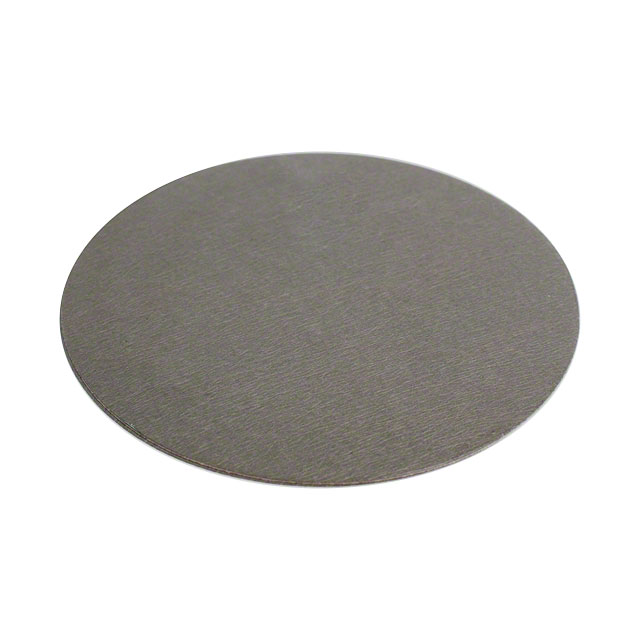

3M CN4490 CIRCLE-2"-100

Obsolete

3M (TC)

RF EMI SHIELDING SHEET 2" 100PK

Search across all available documentation for this part.

Obsolete

3M (TC)

RF EMI SHIELDING SHEET 2" 100PK

Technical Specifications

Parameters and characteristics for this part

Specification	3M CN4490 CIRCLE-2"-100

Adhesive	Conductive, Single Sided
Material	Nickel-Copper (NI/CU) Fabric
Shape	Circular
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Thickness - Overall	0.05 mm
Thickness - Overall [custom]	0.002 in
Type	Shielding Sheet
Width [x]	2 in
Width [x]	50.8 mm

Part	Shelf Life	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Thickness - Overall [custom]	Thickness - Overall	Width	Width	Shape	Length [x]	Length [x]	Material	Type	Shelf Life Start	Adhesive	Width [x]	Width [x]	Length	Length
3M (TC) 3M CN4490 0.75"SQ-250	60 Months	27 °C 80 °F	10 °C	0.002 in	0.05 mm	0.75 in	19.1 mm	Square	0.75 in	19.1 mm	Nickel-Copper (NI/CU) Fabric	Shielding Sheet	Date of Manufacture	Conductive Single Sided
3M (TC) 3M CN4490 1"SQ-250	60 Months	27 °C 80 °F	10 °C	0.002 in	0.05 mm		25.4 mm	Square	1 in	25.4 mm	Nickel-Copper (NI/CU) Fabric	Shielding Sheet	Date of Manufacture	Conductive Single Sided	1 in
3M (TC) 3M CN4490 CIRCLE-1.5"-100	60 Months	27 °C 80 °F	10 °C	0.002 in	0.05 mm		38.1 mm	Circular			Nickel-Copper (NI/CU) Fabric	Shielding Sheet	Date of Manufacture	Conductive Single Sided	1.5 in
3M (TC) 3M CN4490 CIRCLE-2"-100	60 Months	27 °C 80 °F	10 °C	0.002 in	0.05 mm			Circular			Nickel-Copper (NI/CU) Fabric	Shielding Sheet	Date of Manufacture	Conductive Single Sided	2 in	50.8 mm
3M (TC) 3M CN4490 CIRCLE-0.75"-250	60 Months	27 °C 80 °F	10 °C	0.002 in	0.05 mm	0.75 in	19.1 mm	Circular			Nickel-Copper (NI/CU) Fabric	Shielding Sheet	Date of Manufacture	Conductive Single Sided
3M (TC) 3M CN4490 1.5"SQ-100	60 Months	27 °C 80 °F	10 °C	0.002 in	0.05 mm		38.1 mm	Square			Nickel-Copper (NI/CU) Fabric	Shielding Sheet	Date of Manufacture	Conductive Single Sided	1.5 in		1.5 "	38.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF EMI Shielding Sheet CN-4490 Nickel-Copper (NI/CU) Fabric Conductive, Single Sided 2.000" (50.80mm) X X 0.002" (0.05mm)
