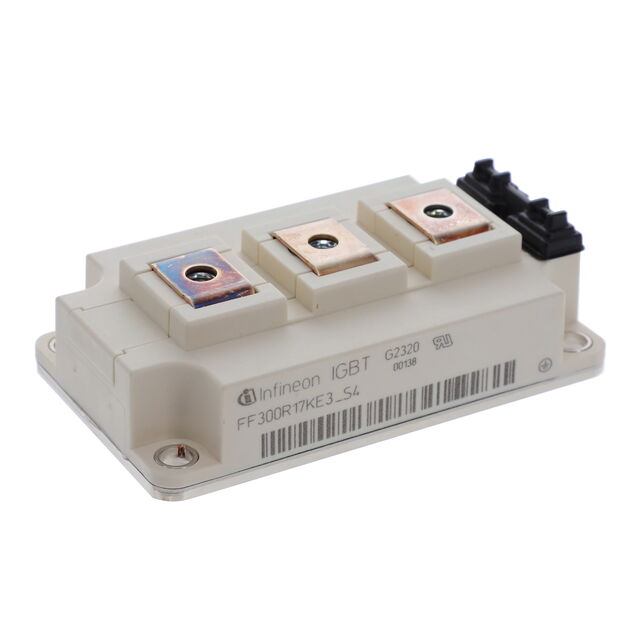

FF300R17KE3S4HOSA1

Active

Infineon Technologies

IGBT MODULE VCES 600V 300A

Search across all available documentation for this part.

Active

Infineon Technologies

IGBT MODULE VCES 600V 300A

Technical Specifications

Parameters and characteristics for this part

Specification	FF300R17KE3S4HOSA1

Configuration	Half Bridge Inverter
Current - Collector Cutoff (Max) [Max]	3 mA
IGBT Type	Trench Field Stop
Input	Standard
Input Capacitance (Cies) @ Vce	27 nF
Mounting Type	Chassis Mount
NTC Thermistor	False
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power - Max [Max]	1450 W
Supplier Device Package	Module
Vce(on) (Max) @ Vge, Ic	2.4 V
Voltage - Collector Emitter Breakdown (Max)	1700 V

Part	IGBT Type	Input	Configuration	Current - Collector Cutoff (Max) [Max]	Mounting Type	Input Capacitance (Cies) @ Vce	Power - Max [Max]	Supplier Device Package	Vce(on) (Max) @ Vge, Ic	Voltage - Collector Emitter Breakdown (Max)	Package / Case	Current - Collector (Ic) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]
Infineon Technologies FF300R17KE4HOSA1	Trench Field Stop	Standard	2 Independent	1 mA	Chassis Mount	24.5 nF	1800 W	Module	2.3 V	1700 V	Module
Infineon Technologies FF300R17ME4PBPSA1	Trench Field Stop	Standard	Half Bridge	3 mA	Chassis Mount	24.5 nF	20 mW	Module	2.3 V	1700 V	Module	600 A
Infineon Technologies FF300R17KE3S4HOSA1	Trench Field Stop	Standard	Half Bridge Inverter	3 mA	Chassis Mount	27 nF	1450 W	Module	2.4 V	1700 V	Module		-40 °C	125 ¯C
Infineon Technologies FF300R17ME4BOSA1	NPT	Standard	Half Bridge	3 mA	Chassis Mount		1800 W	Module	2.3 V	1700 V	Module	375 A	-40 °C	150 °C
Infineon Technologies FF300R17KE4PHOSA1	Trench Field Stop	Standard	Half Bridge	1 mA	Chassis Mount	24.5 nF		Module	2.3 V	1700 V	Module	600 A
Infineon Technologies FF300R17ME4B11BOSA1	Trench Field Stop	Standard	2 Independent	3 mA	Chassis Mount	24.5 nF	1800 W	Module	2.3 V	1700 V	Module	375 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

IGBT Module Trench Field Stop Half Bridge Inverter 1700 V 1450 W Chassis Mount Module
