8PCR-07-006

Active

TE Connectivity AMP Connectors

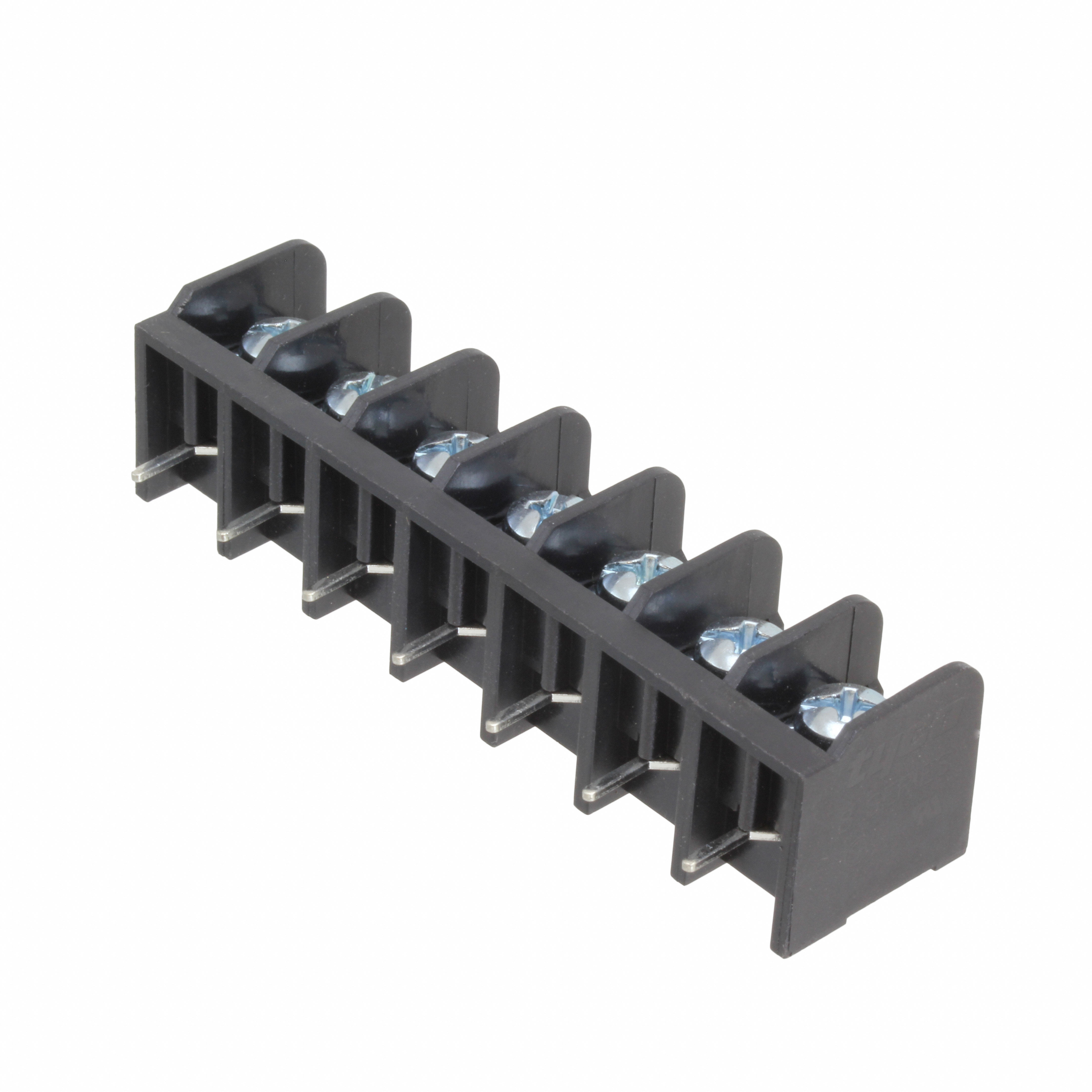

CONN BARRIER STRIP 7CIRC 0.438"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8PCR-07-006

Active

TE Connectivity AMP Connectors

CONN BARRIER STRIP 7CIRC 0.438"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	8PCR-07-006	8PCR Series

Barrier Type	3 Wall (Tri)	3 Wall (Tri)
Bottom Termination	PC Pin	PC Pin
Color	Black	Black
Current Rating (Amps)	30 A	30 A
Material - Insulation	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Circuits	7	2 - 12
Number of Circuits	-	8
Number of Rows	1	1
Number of Wire Entries	7	2 - 12
Operating Temperature [Max]	120 °C	120 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	11.12 mm	11.12 mm
Pitch [x]	0.438 in	0.438 in
Terminal Block Type	Barrier Block	Barrier Block
Terminal Screw Finish	Zinc	Zinc
Terminal Screw Material	Steel	Steel
Top Termination	Screws	Screws
Voltage Rating	600 V	600 V
Wire Gauge [Max]	18 AWG	18 AWG
Wire Gauge [Min]	10 AWG	10 AWG

8PCR Series

CONN BARRIER STRIP 8CIRC 0.438"

Part	Terminal Screw Finish	Material - Insulation	Barrier Type	Bottom Termination	Terminal Block Type	Wire Gauge [Min]	Wire Gauge [Max]	Material Flammability Rating	Mounting Type	Terminal Screw Material	Color	Number of Wire Entries	Current Rating (Amps)	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Pitch [x]	Pitch [x]	Number of Circuits [custom]	Top Termination	Number of Circuits
TE Connectivity AMP Connectors 8PCR-08-006	Zinc	Thermoplastic	3 Wall (Tri)	PC Pin	Barrier Block	10 AWG	18 AWG	UL94 V-0	Through Hole	Steel	Black	8	30 A	600 V	-40 °C	120 °C	1	11.12 mm	0.438 in	8	Screws
TE Connectivity AMP Connectors 8PCR-04-006	Zinc	Thermoplastic	3 Wall (Tri)	PC Pin	Barrier Block	10 AWG	18 AWG	UL94 V-0	Through Hole	Steel	Black	4	30 A	600 V	-40 °C	120 °C	1	11.12 mm	0.438 in		Screws	4
TE Connectivity AMP Connectors 8PCR-10-006	Zinc	Thermoplastic	3 Wall (Tri)	PC Pin	Barrier Block	10 AWG	18 AWG	UL94 V-0	Through Hole	Steel	Black	10	30 A	600 V	-40 °C	120 °C	1	11.12 mm	0.438 in		Screws	10
TE Connectivity AMP Connectors 8PCR-03-007	Zinc	Thermoplastic	3 Wall (Tri)	PC Pin	Barrier Block	10 AWG	18 AWG	UL94 V-0	Through Hole	Steel	Black	3	30 A	600 V	-40 °C	120 °C	1	11.12 mm	0.438 in		Screws	3
TE Connectivity AMP Connectors 8PCR-12-007	Zinc	Thermoplastic	3 Wall (Tri)	PC Pin	Barrier Block	10 AWG	18 AWG	UL94 V-0	Through Hole	Steel	Black	12	30 A	600 V	-40 °C	120 °C	1	11.12 mm	0.438 in		Screws	12
TE Connectivity AMP Connectors 8PCR-08-007	Zinc	Thermoplastic	3 Wall (Tri)	PC Pin	Barrier Block	10 AWG	18 AWG	UL94 V-0	Through Hole	Steel	Black	8	30 A	600 V	-40 °C	120 °C	1	11.12 mm	0.438 in	8	Screws
TE Connectivity AMP Connectors 8PCR-07-006	Zinc	Thermoplastic	3 Wall (Tri)	PC Pin	Barrier Block	10 AWG	18 AWG	UL94 V-0	Through Hole	Steel	Black	7	30 A	600 V	-40 °C	120 °C	1	11.12 mm	0.438 in		Screws	7
TE Connectivity AMP Connectors 8PCR-02-006	Zinc	Thermoplastic	3 Wall (Tri)	PC Pin	Barrier Block	10 AWG	18 AWG	UL94 V-0	Through Hole	Steel	Black	2	30 A	600 V	-40 °C	120 °C	1	11.12 mm	0.438 in		Screws	2
TE Connectivity AMP Connectors 8PCR-03-006	Zinc	Thermoplastic	3 Wall (Tri)	PC Pin	Barrier Block	10 AWG	18 AWG	UL94 V-0	Through Hole	Steel	Black	3	30 A	600 V	-40 °C	120 °C	1	11.12 mm	0.438 in		Screws	3
TE Connectivity AMP Connectors 8PCR-05	Zinc	Thermoplastic	3 Wall (Tri)	PC Pin	Barrier Block	10 AWG	18 AWG	UL94 V-0	Through Hole	Steel	Black	5	30 A	600 V	-40 °C	120 °C	1	11.12 mm	0.438 in		Screws	5

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	320	$ 11.71

Description

General part information

8PCR Series

7 Circuit 0.438" (11.12mm) Barrier Block Connector Screws
