8PCR-05

Active

TE Connectivity AMP Connectors

CONN BARRIER STRIP 5CIRC 0.438"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8PCR-05

Active

TE Connectivity AMP Connectors

CONN BARRIER STRIP 5CIRC 0.438"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	400	$ 10.13

Description

General part information

8PCR Series

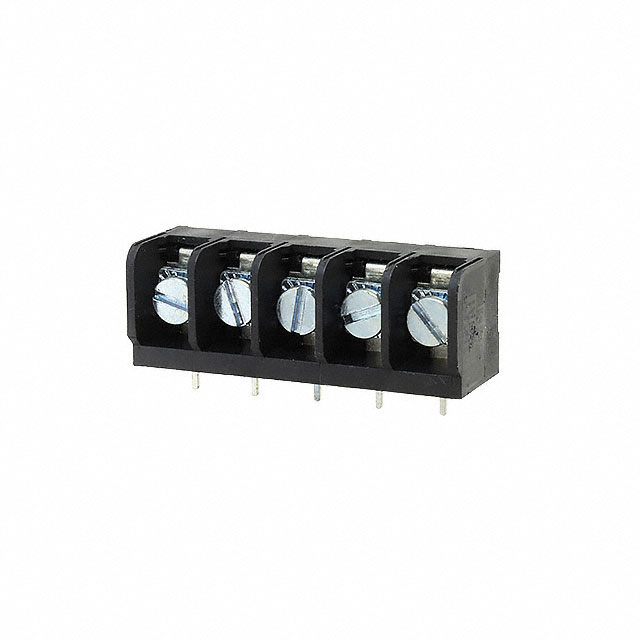

5 Circuit 0.438" (11.12mm) Barrier Block Connector Screws

Documents

Technical documentation and resources

Datasheet

Specification	8PCR-05	8PCR Series

Barrier Type	3 Wall (Tri)	3 Wall (Tri)
Bottom Termination	PC Pin	PC Pin
Color	Black	Black
Current Rating (Amps)	30 A	30 A
Material - Insulation	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Circuits	5	2 - 12
Number of Circuits	-	8
Number of Rows	1	1
Number of Wire Entries	5	2 - 12
Operating Temperature [Max]	120 °C	120 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	11.12 mm	11.12 mm
Pitch [x]	0.438 in	0.438 in
Terminal Block Type	Barrier Block	Barrier Block
Terminal Screw Finish	Zinc	Zinc
Terminal Screw Material	Steel	Steel
Top Termination	Screws	Screws
Voltage Rating	600 V	600 V
Wire Gauge [Max]	18 AWG	18 AWG
Wire Gauge [Min]	10 AWG	10 AWG

Part

Terminal Screw Finish

Material - Insulation

Barrier Type

Bottom Termination

Terminal Block Type

Wire Gauge [Min]

Wire Gauge [Max]

Material Flammability Rating

Mounting Type

Terminal Screw Material

Color

Number of Wire Entries

Current Rating (Amps)

Voltage Rating

Operating Temperature [Min]

Operating Temperature [Max]

Number of Rows

Pitch [x]

Number of Circuits [custom]

Top Termination

Number of Circuits
