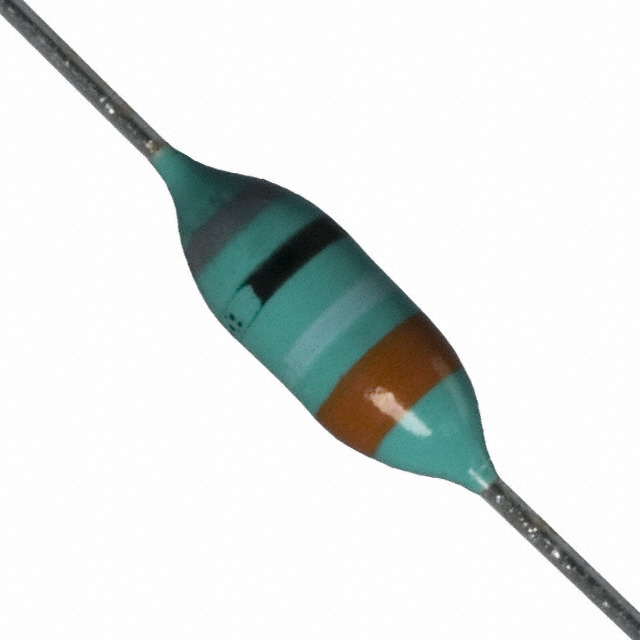

8230-58-RC

Active

Bourns Inc.

FIXED IND 39UH 180MA 3.6 OHM TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8230-58-RC

Active

Bourns Inc.

FIXED IND 39UH 180MA 3.6 OHM TH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8230-58-RC

Current Rating (Amps)	0.18 A
DC Resistance (DCR) [Max]	3.6 Ohm
Frequency - Self Resonant	22 MHz
Inductance	39 µH
Inductance Frequency - Test	2.5 MHz
Material - Core	Ferrite
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Q @ Freq	2.5 MHz, 45
Shielding	Unshielded
Size / Dimension [diameter]	0.12 "
Size / Dimension [diameter]	3.05 mm
Size / Dimension [x]	0.3 in
Size / Dimension [x]	7.62 mm
Tolerance	10 %
Type	Wirewound, Drum Core

8230 Series

Part	Tolerance	Frequency - Self Resonant	Type	Material - Core	Q @ Freq	Mounting Type	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Inductance	DC Resistance (DCR) [Max]	Inductance Frequency - Test	Package / Case	Current Rating (Amps)	DC Resistance (DCR)
Bourns Inc. 8230-58-RC	10 %	22 MHz	Drum Core Wirewound	Ferrite	2.5 MHz 45	Through Hole	0.12 "	0.3 in	3.05 mm	7.62 mm	Unshielded	105 ░C	-55 °C	39 µH	3.6 Ohm	2.5 MHz	Axial	0.18 A
Bourns Inc. 8230-34	10 %	82 MHz	Drum Core Wirewound	Ferrite	7.9 MHz 45	Through Hole	0.12 "	0.3 in	3.05 mm	7.62 mm	Unshielded	105 ░C	-55 °C	3.9 µH	1 Ohm	7.9 MHz	Axial	350 mA
Bourns Inc. 8230-02-RC	10 %	550 MHz	Wirewound	Phenolic	25 MHz 35	Through Hole	0.12 "	0.3 in	3.05 mm	7.62 mm	Unshielded	105 ░C	-55 °C	180 nH		25 MHz	Axial	1.01 A	120 mOhm
Bourns Inc. 8230-28-RC	10 %	115 MHz	Drum Core Wirewound	Ferrite	7.9 MHz 30	Through Hole	0.12 "	0.3 in	3.05 mm	7.62 mm	Unshielded	105 ░C	-55 °C	2.2 µH	400 mOhm	7.9 MHz	Axial	0.55 A
Bourns Inc. 8230-30-RC	10 %	100 MHz	Drum Core Wirewound	Ferrite	7.9 MHz 37	Through Hole	0.12 "	0.3 in	3.05 mm	7.62 mm	Unshielded	105 ░C	-55 °C	2.7 µH	500 mOhm	7.9 MHz	Axial	495 mA
Bourns Inc. 8230-08-RC	10 %	410 MHz	Wirewound	Phenolic	25 MHz 30	Through Hole	0.12 "	0.3 in	3.05 mm	7.62 mm	Unshielded	105 ░C	-55 °C	330 nH		25 MHz	Axial	780 mA	200 mOhm
Bourns Inc. 8230-84-RC	10 %	6 MHz	Drum Core Wirewound	Ferrite	30 790 kHz	Through Hole	0.12 "	0.3 in	3.05 mm	7.62 mm	Unshielded	105 ░C	-55 °C		42 Ohm	790 kHz	Axial	50 mA
Bourns Inc. 8230-10	10 %	380 MHz	Wirewound	Phenolic	25 MHz 30	Through Hole	0.12 "	0.3 in	3.05 mm	7.62 mm	Unshielded	105 ░C	-55 °C	390 nH	300 mOhm	25 MHz	Axial	0.64 A
Bourns Inc. 8230-60-RC	10 %	20 MHz	Drum Core Wirewound	Ferrite	2.5 MHz 45	Through Hole	0.12 "	0.3 in	3.05 mm	7.62 mm	Unshielded	105 ░C	-55 °C	47 µH	4.5 Ohm	2.5 MHz	Axial	0.165 A
Bourns Inc. 8230-74	10 %	10 MHz	Drum Core Wirewound	Ferrite	30 790 kHz	Through Hole	0.12 "	0.3 in	3.05 mm	7.62 mm	Unshielded	105 ░C	-55 °C	180 µH	17 Ohm	790 kHz	Axial	0.079 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 1.10

Description

General part information

8230 Series

39 µH Unshielded Drum Core, Wirewound Inductor 180 mA 3.6Ohm Max Axial
