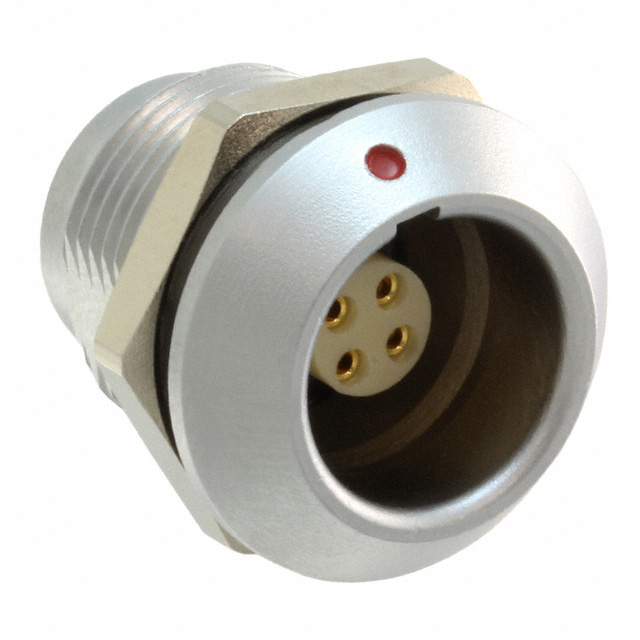

Specification	821K004-203R001

Applications	Telecommunications, Medical, Instrumentation, Testing Equipment & Measurement, Industrial
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	7 µin
Contact Material	Copper Alloy
Current Rating	10 A
Fastening Type	Push-Pull
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	Polyphenylene Sulfide, PPS
Mounting Feature	Rear Side Nut, Bulkhead
Mounting Type	Panel Mount
Number of Positions	4
Operating Temperature (Max)	200 °C
Operating Temperature (Min)	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shielding	Shielded
Termination	Solder Cup
Voltage Rating	430 V

821K Series

Part	Connector Type	Current Rating	Shell Material	Applications	Ingress Protection Description	Ingress Protection IP Rating	Contact Finish Thickness - Mating	Number of Positions	Voltage Rating	Insert Material	Termination	Contact Finish - Mating	Shell Finish	Primary Material	Contact Material	Orientation	Shielding	Mounting Type	Mounting Feature	Color	Operating Temperature (Min)	Operating Temperature (Max)	Fastening Type	Features	Cable Opening (Min)	Cable Opening (Max)	Plating	Backshell Material
NorComp Inc. 821K007-213R001	Female Sockets Receptacle	7 A	Brass	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Dust Tight Waterproof	IP67	7 µin	7	315 V	Polyphenylene Sulfide PPS	Solder	Gold	Nickel	Metal	Copper Alloy	Keyed	Shielded	Panel Mount Through Hole	Bulkhead Front Side Nut	Silver	-40 °C	200 °C	Push-Pull
NorComp Inc. 821K002-273L701	Female Sockets Receptacle	15 A	Brass	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Dust Tight Waterproof	IP67	7 µin	2	500 V	Polyphenylene Sulfide PPS	Solder Cup	Gold	Nickel	Metal	Copper Alloy	Keyed	Shielded	Free Hanging (In-Line)		Black Silver	-40 °C	200 °C	Push-Pull	Backshell Strain Relief	0.248 in	0.283 in	Chrome	Brass
NorComp Inc. 821K003-273L501	Female Sockets Receptacle	12 A	Brass	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Dust Tight Waterproof	IP67	7 µin	3	430 V	Polyphenylene Sulfide PPS	Solder Cup	Gold	Nickel	Metal	Copper Alloy	Keyed	Shielded	Free Hanging (In-Line)		Black Silver	-40 °C	200 °C	Push-Pull	Backshell Strain Relief	0.169 in	0.205 in	Chrome	Brass
NorComp Inc. 821K007-273L401	Female Sockets Receptacle	7 A	Brass	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Dust Tight Waterproof	IP67	7 µin	7	315 V	Polyphenylene Sulfide PPS	Solder Cup	Gold	Nickel	Metal	Copper Alloy	Keyed	Shielded	Free Hanging (In-Line)		Black Silver	-40 °C	200 °C	Push-Pull	Backshell Strain Relief	0.13 in	0.165 in	Chrome	Brass
NorComp Inc. 821K002-213R001	Female Sockets Receptacle	15 A	Brass	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Dust Tight Waterproof	IP67	7 µin	2	500 V	Polyphenylene Sulfide PPS	Solder	Gold	Nickel	Metal	Copper Alloy	Keyed	Shielded	Panel Mount Through Hole	Bulkhead Front Side Nut	Silver	-40 °C	200 °C	Push-Pull
NorComp Inc. 821K005-273L501	Female Sockets Receptacle	9 A	Brass	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Dust Tight Waterproof	IP67	7 µin	5	415 V	Polyphenylene Sulfide PPS	Solder Cup	Gold	Nickel	Metal	Copper Alloy	Keyed	Shielded	Free Hanging (In-Line)		Black Silver	-40 °C	200 °C	Push-Pull	Backshell Strain Relief	0.169 in	0.205 in	Chrome	Brass
NorComp Inc. 821K003-213R001	Female Sockets Receptacle	12 A	Brass	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Dust Tight Waterproof	IP67	7 µin	3	430 V	Polyphenylene Sulfide PPS	Solder	Gold	Nickel	Metal	Copper Alloy	Keyed	Shielded	Panel Mount Through Hole	Bulkhead Front Side Nut	Silver	-40 °C	200 °C	Push-Pull
NorComp Inc. 821K003-173L501	Male Pins Plug	12 A	Brass	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Dust Tight Waterproof	IP67	7 µin	3	430 V	Polyphenylene Sulfide PPS	Solder Cup	Gold	Nickel	Metal	Copper Alloy	Keyed	Shielded	Free Hanging (In-Line)		Black Silver	-40 °C	200 °C	Push-Pull	Backshell Strain Relief	0.169 in	0.205 in	Chrome	Brass
NorComp Inc. 821K005-173L601	Male Pins Plug	9 A	Brass	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Dust Tight Waterproof	IP67	7 µin	5	415 V	Polyphenylene Sulfide PPS	Solder Cup	Gold	Nickel	Metal	Copper Alloy	Keyed	Shielded	Free Hanging (In-Line)		Black Silver	-40 °C	200 °C	Push-Pull	Backshell Strain Relief	0.209 in	0.244 in	Chrome	Brass
NorComp Inc. 821K003-173L601	Male Pins Plug	12 A	Brass	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Dust Tight Waterproof	IP67	7 µin	3	430 V	Polyphenylene Sulfide PPS	Solder Cup	Gold	Nickel	Metal	Copper Alloy	Keyed	Shielded	Free Hanging (In-Line)		Black Silver	-40 °C	200 °C	Push-Pull	Backshell Strain Relief	0.209 in	0.244 in	Chrome	Brass
