821K007-273L401

Active

MH Connectors

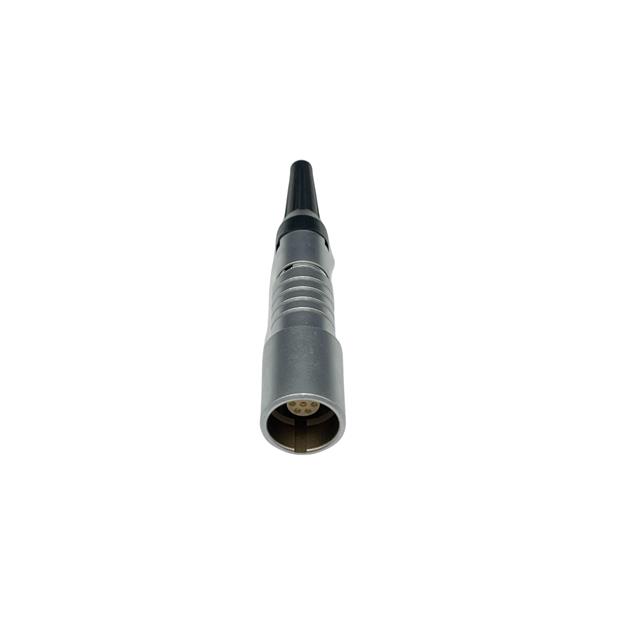

CIRCULAR CONNECTOR, QUIK-LOQ 821K SERIES, CABLE MOUNT RECEPTACLE, 7 CONTACTS, SOLDER SOCKET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 3D Product Image EN +3

821K007-273L401

Active

MH Connectors

CIRCULAR CONNECTOR, QUIK-LOQ 821K SERIES, CABLE MOUNT RECEPTACLE, 7 CONTACTS, SOLDER SOCKET

Deep-Dive with AI

DocumentsDatasheet 3D Product Image EN +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	821K007-273L401

Applications	Testing Equipment & Measurement, Medical, Industrial, Telecommunications, Instrumentation
Backshell Material, Plating	Brass, Chrome
Cable Opening [diameter]	3.3 mm, 4.2 mm
Cable Opening [diameter]	0.165 in, 0.13 in
Color	Black, Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	7 µin
Contact Finish Thickness - Mating	0.178 µm
Contact Material	Copper Alloy
Current Rating (Amps)	7 A
Fastening Type	Push-Pull
Features	Strain Relief, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyphenylene Sulfide (PPS)
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shielding	Shielded
Voltage Rating	315 V

821K Series

Part	Ingress Protection	Backshell Material, Plating	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Contact Material	Current Rating (Amps)	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Color	Connector Type	Primary Material	Fastening Type	Shell Material	Mounting Type	Features	Orientation	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Insert Material	Shielding	Shell Finish	Contact Finish - Mating	Cable Opening [diameter]	Cable Opening [diameter]	Number of Positions	Mounting Feature	Termination	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]
MH Connectors 821K003-273L501	IP67 - Dust Tight Waterproof	Brass Chrome	200 °C	-40 °C	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Copper Alloy	12 A	430 V	7 µin	0.178 µm	Black Silver	Receptacle Female Sockets	Metal	Push-Pull	Brass	Free Hanging (In-Line)	Backshell Strain Relief	Keyed	5.2 mm	0.205 in	0.169 in	4.3 mm	Polyphenylene Sulfide (PPS)	Shielded	Nickel	Gold
MH Connectors 821K007-273L401	IP67 - Dust Tight Waterproof	Brass Chrome	200 °C	-40 °C	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Copper Alloy	7 A	315 V	7 µin	0.178 µm	Black Silver	Receptacle Female Sockets	Metal	Push-Pull	Brass	Free Hanging (In-Line)	Backshell Strain Relief	Keyed					Polyphenylene Sulfide (PPS)	Shielded	Nickel	Gold	3.3 mm 4.2 mm	0.13 in 0.165 in	7
MH Connectors 821K002-213R001	IP67 - Dust Tight Waterproof		200 °C	-40 °C	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Copper Alloy	15 A	500 V	7 µin	0.178 µm	Silver	Receptacle Female Sockets	Metal	Push-Pull	Brass	Panel Mount Through Hole		Keyed					Polyphenylene Sulfide (PPS)	Shielded	Nickel	Gold			2	Bulkhead - Front Side Nut	Solder
MH Connectors 821K005-273L501	IP67 - Dust Tight Waterproof	Brass Chrome	200 °C	-40 °C	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Copper Alloy	9 A	415 V	7 µin	0.178 µm	Black Silver	Receptacle Female Sockets	Metal	Push-Pull	Brass	Free Hanging (In-Line)	Backshell Strain Relief	Keyed	5.2 mm	0.205 in	0.169 in	4.3 mm	Polyphenylene Sulfide (PPS)	Shielded	Nickel	Gold
MH Connectors 821K003-213R001	IP67 - Dust Tight Waterproof		200 °C	-40 °C	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Copper Alloy	12 A	430 V	7 µin	0.178 µm	Silver	Receptacle Female Sockets	Metal	Push-Pull	Brass	Panel Mount Through Hole		Keyed					Polyphenylene Sulfide (PPS)	Shielded	Nickel	Gold				Bulkhead - Front Side Nut	Solder
MH Connectors 821K003-173L501	IP67 - Dust Tight Waterproof	Brass Chrome	200 °C	-40 °C	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Copper Alloy	12 A	430 V	7 µin	0.178 µm	Black Silver	Male Pins Plug	Metal	Push-Pull	Brass	Free Hanging (In-Line)	Backshell Strain Relief	Keyed	5.2 mm	0.205 in	0.169 in	4.3 mm	Polyphenylene Sulfide (PPS)	Shielded	Nickel	Gold
MH Connectors 821K003-173L601	IP67 - Dust Tight Waterproof	Brass Chrome	200 °C	-40 °C	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Copper Alloy	12 A	430 V	7 µin	0.178 µm	Black Silver	Male Pins Plug	Metal	Push-Pull	Brass	Free Hanging (In-Line)	Backshell Strain Relief	Keyed	6.2 mm	0.244 in	0.209 in	5.3 mm	Polyphenylene Sulfide (PPS)	Shielded	Nickel	Gold
MH Connectors 821K004-273L701	IP67 - Dust Tight Waterproof	Brass Chrome	200 °C	-40 °C	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Copper Alloy	10 A	430 V	7 µin	0.178 µm	Black Silver	Receptacle Female Sockets	Metal	Push-Pull	Brass	Free Hanging (In-Line)	Backshell Strain Relief	Keyed					Polyphenylene Sulfide (PPS)	Shielded	Nickel	Gold			4			0.248 in	7.2 mm	6.3 mm	0.283 in
MH Connectors 821K003-273L601	IP67 - Dust Tight Waterproof	Brass Chrome	200 °C	-40 °C	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Copper Alloy	12 A	430 V	7 µin	0.178 µm	Black Silver	Receptacle Female Sockets	Metal	Push-Pull	Brass	Free Hanging (In-Line)	Backshell Strain Relief	Keyed	6.2 mm	0.244 in	0.209 in	5.3 mm	Polyphenylene Sulfide (PPS)	Shielded	Nickel	Gold
MH Connectors 821K007-173L701	IP67 - Dust Tight Waterproof	Brass Chrome	200 °C	-40 °C	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Copper Alloy	7 A	315 V	7 µin	0.178 µm	Black Silver	Male Pins Plug	Metal	Push-Pull	Brass	Free Hanging (In-Line)	Backshell Strain Relief	Keyed					Polyphenylene Sulfide (PPS)	Shielded	Nickel	Gold			7			0.248 in	7.2 mm	6.3 mm	0.283 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	18	$ 41.87
Newark	Each	10	$ 46.07
		100	$ 39.33
		500	$ 37.36

Description

General part information

821K Series

The 821K007-273L401 from Norcomp is an 821K series IP67/68 rated-12mm push pull female connector with 7 poles. The precision designed metal shell push-pull connector is engineered to withstand shock and high vibration both indoors and outdoors in harsh environments. The small rugged, sealed push pull connector is ideal for applications where quick connect / disconnect and environmental protection are required. This new versatile connector is fully intermateable with existing push pull industry solutions.
