TC-300-NMH-RA-D

Active

Amphenol Times Microwave Systems

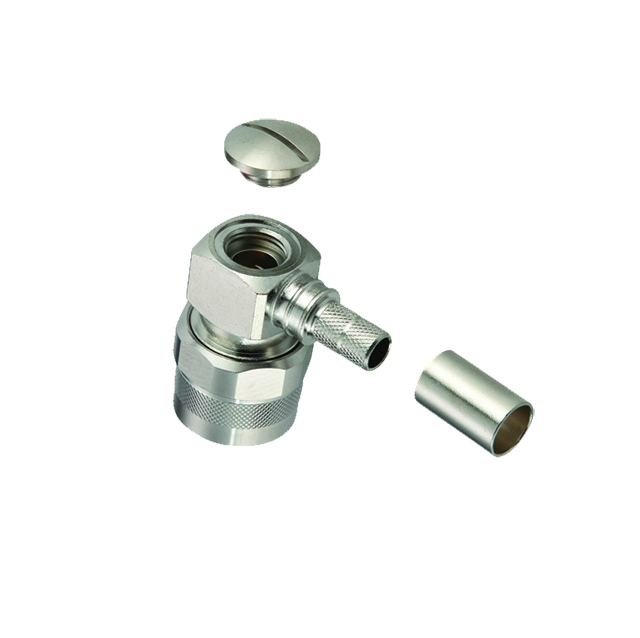

N-MALE (PLUG) RIGHT ANGLE CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

TC-300-NMH-RA-D

Active

Amphenol Times Microwave Systems

N-MALE (PLUG) RIGHT ANGLE CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	16	$ 20.84

Description

General part information

TC-300 Series

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TC-300-NMH-RA-D	TC-300 Series

Body Finish	White Bronze	White Bronze, Nickel
Body Material	Brass	Brass, Stainless Steel
Cable Group	LMR-300	LMR-300-75, LMR-300
Center Contact Material	Brass	Brass, Phosphor Bronze, Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	N Type	BNC, N Type, SMA, TNC
Connector Type	Male Pin, Plug	Male Pin, Plug, Female Socket, Jack
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	-	Bayonet Lock
Frequency - Max [Max]	6000 MHz	2 - 6000 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 - 75 Ohms
Mating Cycles	500	500
Mounting Feature	-	Bulkhead - Front Side Nut
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature [Max]	125 °C	85 - 165 °C
Operating Temperature [Min]	-40 °C	-65 - -40 °C
Shield Termination	Crimp	Crimp
Voltage Rating	750 VDC	500 - 750 V

TC-300 Series

TYPE BNC-MALE (PLUG) CRIMP CONNE

Part	Shield Termination	Frequency - Max [Max]	Voltage Rating	Dielectric Material	Center Contact Plating	Contact Termination	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Mating Cycles	Connector Type	Body Finish	Mounting Type	Impedance	Body Material	Cable Group	Fastening Type	Number of Ports	Housing Color	Mounting Feature
Amphenol Times Microwave Systems TC-300-BM-75-X	Crimp	2 GHz	500 V	Polytetrafluoroethylene (PTFE)	Gold	Solder	Brass	-55 °C	125 °C	BNC	500	Male Pin, Plug	White Bronze	Free Hanging (In-Line)	75 Ohms	Brass	LMR-300-75	Bayonet Lock	1	Silver
Amphenol Times Microwave Systems TC-300-NMH-X	Crimp	6000 MHz	500 V	Polytetrafluoroethylene (PTFE)	Gold	Solder	Brass	-65 ░C	165 °C	N Type	500	Male Pin, Plug	White Bronze	Free Hanging (In-Line)	50 Ohms	Brass	LMR-300		1	Silver
Amphenol Times Microwave Systems TC-300-NF-X	Crimp	6000 MHz	500 V	Polytetrafluoroethylene (PTFE)	Gold	Solder	Phosphor Bronze	-55 °C	155 °C	N Type	500	Female Socket, Jack	White Bronze	Free Hanging (In-Line)	50 Ohms	Brass	LMR-300		1	Silver
Amphenol Times Microwave Systems TC-300-SF-BH	Crimp	2.5 GHz	500 V	Polytetrafluoroethylene (PTFE)	Gold	Solder	Beryllium Copper	-40 °C	85 °C	SMA		Female Socket, Plug			50 Ohms	Stainless Steel	LMR-300		1	Silver	Bulkhead - Front Side Nut
Amphenol Times Microwave Systems TC-300-NMH-RA-D	Crimp	6000 MHz	750 VDC	Polytetrafluoroethylene (PTFE)	Gold	Solder	Brass	-40 °C	125 °C	N Type	500	Male Pin, Plug	White Bronze	Free Hanging (In-Line), Right Angle	50 Ohms	Brass	LMR-300		1	Silver
Amphenol Times Microwave Systems TC-300-TM	Crimp	2.5 GHz	500 V	Polytetrafluoroethylene (PTFE)	Gold	Solder	Brass	-40 °C	85 °C	TNC		Male Pin, Plug	Nickel	Free Hanging (In-Line)	50 Ohms	Brass	LMR-300		1	Silver
Amphenol Times Microwave Systems TC-300-SM	Crimp	2.5 GHz	500 V	Polytetrafluoroethylene (PTFE)	Gold	Solder	Beryllium Copper	-40 °C	85 °C	SMA		Male Pin, Plug		Free Hanging (In-Line)	50 Ohms	Stainless Steel	LMR-300		1	Silver
