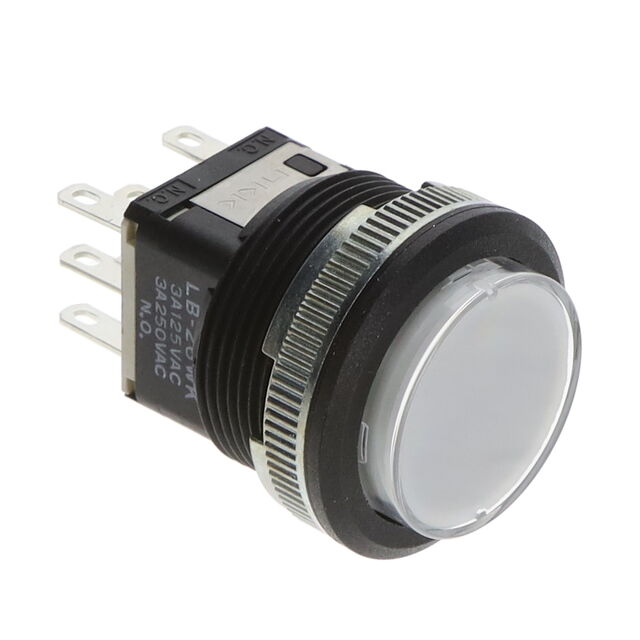

LB26WKW01-01-JB

Active

NKK Switches

STANDARD SIZE PANEL SEAL PUSHBUTTON

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LB26WKW01-01-JB

Active

NKK Switches

STANDARD SIZE PANEL SEAL PUSHBUTTON

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LB26WKW01-01-JB

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	DPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	3 A
Electrical Life	100000 Cycles
Illumination Type, Color	White, Neon
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22 mm
Switch Function	On-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

LB26WKW01 Series

Part	Mounting Type	Actuator Marking	Type	Current Rating (Amps)	Termination Style	Termination Style	Termination Style	Circuit	Voltage Rating - AC	Voltage Rating - DC	Mechanical Life	Color - Actuator/Cap	Ingress Protection	Panel Cutout Dimensions [diameter]	Actuator Type	Illumination Type, Color	Electrical Life	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Voltage (Nominal)
NKK Switches LB26WKW01-01-JB	Panel Mount Front	No Marking	Illuminated Standard	3 A	0.11 in	Quick Connect Solder	2.8 mm	DPDT	125 V	30 V	200000 Cycles	Clear	IP65 - Dust Tight Water Resistant	22 mm	Button Round	Neon White	100000 Cycles	On-On	50 °C	-25 °C
NKK Switches LB26WKW01-5C-JC	Panel Mount Front	No Marking	Illuminated Standard	3 A	0.11 in	Quick Connect Solder	2.8 mm	DPDT	125 V	30 V	200000 Cycles	Clear (Red Filter/Diffuser)	IP65 - Dust Tight Water Resistant	22 mm	Button Round	LED Red	100000 Cycles	On-On	50 °C	-25 °C	1.9 VDC
NKK Switches LB26WKW01-5C05-JC	Panel Mount Front	No Marking	Illuminated Standard	3 A	0.11 in	Quick Connect Solder	2.8 mm	DPDT	125 V	30 V	200000 Cycles	Clear (Red Filter/Diffuser)	IP65 - Dust Tight Water Resistant	22 mm	Button Round	LED Red	100000 Cycles	On-On	50 °C	-25 °C	5 VDC
NKK Switches LB26WKW01-5D-JD	Panel Mount Front	No Marking	Illuminated Standard	3 A	0.11 in	Quick Connect Solder	2.8 mm	DPDT	125 V	30 V	200000 Cycles	Clear	IP65 - Dust Tight Water Resistant	22 mm	Button Round	Amber LED	100000 Cycles	On-On	50 °C	-25 °C	2 VDC
NKK Switches LB26WKW01-6G-JB	Panel Mount Front	No Marking	Illuminated Standard	3 A	0.11 in	Quick Connect Solder	2.8 mm	DPDT	125 V	30 V	200000 Cycles	Clear	IP65 - Dust Tight Water Resistant	22 mm	Button Round	Blue LED	100000 Cycles	On-On	50 °C	-25 °C	3.6 VDC
NKK Switches LB26WKW01-JF	Panel Mount Front	No Marking	Standard	3 A	0.11 in	Quick Connect Solder	2.8 mm	DPDT	125 V	30 V	200000 Cycles	Clear	IP65 - Dust Tight Water Resistant	22 mm	Button Round		100000 Cycles	On-On	70 °C	-25 °C
NKK Switches LB26WKW01-01-JC	Panel Mount Front	No Marking	Illuminated Standard	3 A	0.11 in	Quick Connect Solder	2.8 mm	DPDT	125 V	30 V	200000 Cycles	Clear (Red Filter/Diffuser)	IP65 - Dust Tight Water Resistant	22 mm	Button Round	Neon Red	100000 Cycles	On-On	50 °C	-25 °C
NKK Switches LB26WKW01-5F-JB	Panel Mount Front	No Marking	Illuminated Standard	3 A	0.11 in	Quick Connect Solder	2.8 mm	DPDT	125 V	30 V	200000 Cycles	Clear	IP65 - Dust Tight Water Resistant	22 mm	Button Round	Green LED	100000 Cycles	On-On	50 °C	-25 °C	2.1 VDC
NKK Switches LB26WKW01-5D12-JD	Panel Mount Front	No Marking	Illuminated Standard	3 A	0.11 in	Quick Connect Solder	2.8 mm	DPDT	125 V	30 V	200000 Cycles	Clear	IP65 - Dust Tight Water Resistant	22 mm	Button Round	Amber LED	100000 Cycles	On-On	50 °C	-25 °C	12 VDC
NKK Switches LB26WKW01-BJ	Panel Mount Front	No Marking	Standard	3 A	0.11 in	Quick Connect Solder	2.8 mm	DPDT	125 V	30 V	200000 Cycles	White	IP65 - Dust Tight Water Resistant	22 mm	Button Round		100000 Cycles	On-On	70 °C	-25 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.91
		10	$ 21.49
		25	$ 20.26
		50	$ 19.38
		100	$ 18.53
		250	$ 17.46
		500	$ 16.70
Newark	Each	1	$ 42.00
		5	$ 37.45
		10	$ 36.18
		25	$ 34.18
		50	$ 31.82
		100	$ 28.18
		250	$ 25.27

Description

General part information

LB26WKW01 Series

Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Front
