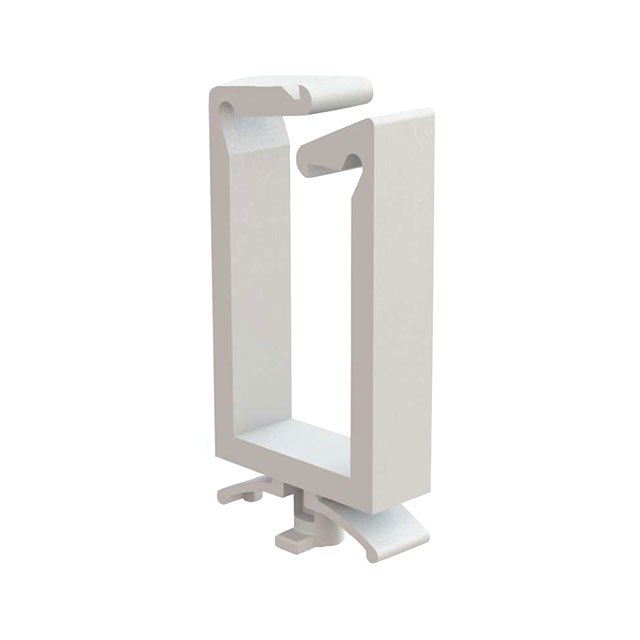

LWS-9-3-01

Active

Essentra Access Solutions

CBL CLIP WIRE SADDLE PUSHIN TURN

Search across all available documentation for this part.

Active

Essentra Access Solutions

CBL CLIP WIRE SADDLE PUSHIN TURN

Technical Specifications

Parameters and characteristics for this part

Specification	LWS-9-3-01

Color	Natural
Features	Anti-Rotation Pin
Height [z]	27.18 mm
Height [z]	1.07 in
Length	15.24 mm
Length	0.6 in
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Winged, Push In, 1/4 Turn
Opening Size [x]	11.3 mm
Opening Size [x]	0.444 in
Opening Size [z]	0.75 in
Opening Size [z]	19.05 mm
Panel Hole Size [x]	0.11 "
Panel Hole Size [x]	2.79 mm
Panel Hole Size [y]	7.11 mm
Panel Hole Size [y]	0.28 "
Type	Clip, Wire Saddle
Type Attributes	Hinged, Locking

Part	Type Attributes	Height [z]	Height [z]	Material Flammability Rating	Opening Size [x]	Opening Size [x]	Opening Size [z]	Opening Size [z]	Type	Mounting Type	Color	Panel Hole Size [x]	Panel Hole Size [y]	Panel Hole Size [y]	Panel Hole Size [x]	Length	Length	Features	Material
Essentra Access Solutions LWS-9-4-01	Hinged Locking	1.38 in	35.05 mm	UL94 V-2	0.444 in	11.3 mm	1.06 in	26.92 mm	Clip Wire Saddle	1/4 Turn Push In Winged	Natural	0.11 "	7.11 mm	0.28 "	2.79 mm	15.24 mm	0.6 in	Anti-Rotation Pin	Polyamide (PA66) Nylon 6/6
Essentra Access Solutions LWS-9-3-01	Hinged Locking	1.07 in	27.18 mm	UL94 V-2	0.444 in	11.3 mm	0.75 in	19.05 mm	Clip Wire Saddle	1/4 Turn Push In Winged	Natural	0.11 "	7.11 mm	0.28 "	2.79 mm	15.24 mm	0.6 in	Anti-Rotation Pin	Polyamide (PA66) Nylon 6/6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.22

General part information

Cable Clip, Wire Saddle Natural Push In, 1/4 Turn, Winged 0.444" L x 0.750" H (11.30mm x 19.05mm)

Technical documentation and resources

No documents available
