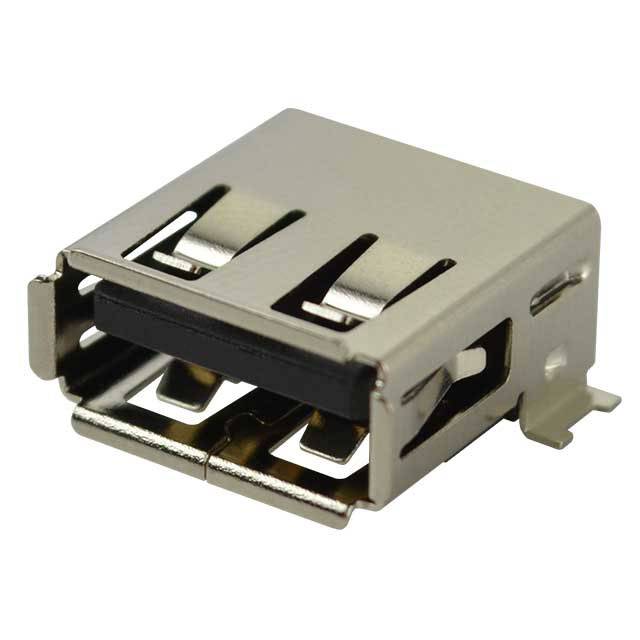

UJ2-AH-1-SMT-TR

Active

CUI Devices

CONN RCPT USB2.0 TYPEA 4POS SMD

Search across all available documentation for this part.

Active

CUI Devices

CONN RCPT USB2.0 TYPEA 4POS SMD

Technical Specifications

Parameters and characteristics for this part

Specification	UJ2-AH-1-SMT-TR

Connector Type	USB-A (USB TYPE-A)
Contact Finish	Gold
Features	Solder Retention, Board Guide
Features	3 µ
Gender	Receptacle
Insulation Color	Black
Mating Cycles	1500
Mounting Feature	Horizontal
Mounting Type	Surface Mount
Number of Contacts [custom]	4
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell/Shielding Material	Brass
Shielding	Shielded
Specifications	USB 2.0
Termination	Solder
Voltage - Rated	30 VAC

Part	Mounting Feature	Shell/Shielding Material	Mounting Type	Insulation Color	Contact Finish	Number of Contacts [custom]	Connector Type	Shielding	Material Flammability Rating	Number of Ports	Termination	Voltage - Rated	Gender	Specifications	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Features	Features
CUI Devices UJ2-AH-4-TH	Horizontal	Steel	Through Hole Right Angle	Black	Gold	4	USB-A (USB TYPE-A)	Shielded	UL94 V-0	1	Solder	30 VAC	Receptacle	USB 2.0	85 °C	-20 C	1500
CUI Devices UJ2-AH-1-SMT-TR	Horizontal	Brass	Surface Mount	Black	Gold	4	USB-A (USB TYPE-A)	Shielded		1	Solder	30 VAC	Receptacle	USB 2.0	105 ░C	-40 °C	1500	Board Guide Solder Retention	3 µ

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-A (USB TYPE-A) USB 2.0 Receptacle Connector 4 Position Surface Mount
