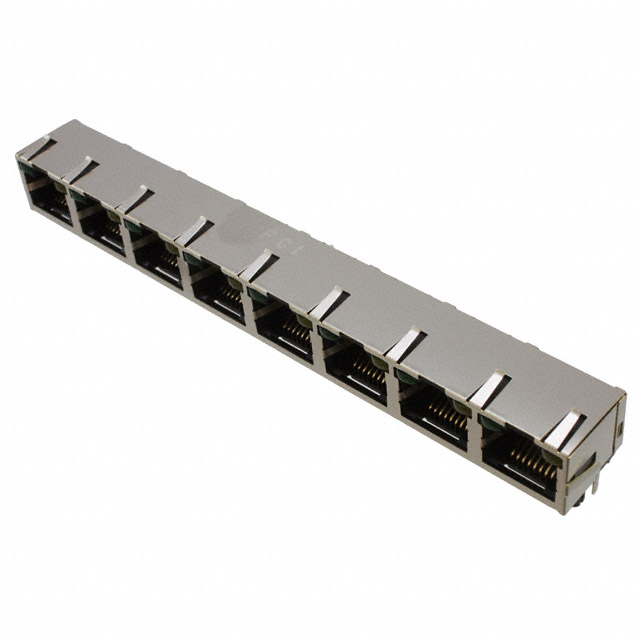

10118068-5136210LF

Obsolete

Amphenol ICC (FCI)

CONN MOD JACK 8P8C R/A SHIELDED

Search across all available documentation for this part.

Obsolete

Amphenol ICC (FCI)

CONN MOD JACK 8P8C R/A SHIELDED

Technical Specifications

Parameters and characteristics for this part

Specification	10118068-5136210LF

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Housing Material	Thermoplastic
LED Color	Yellow, Green
Mounting Type	Through Hole
Number of Ports	8
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Ratings	Cat3
Shielding	Shielded, EMI Finger
Tab Direction	Up
Termination	Solder

Part	Mounting Type	Housing Material	Shielding	Tab Direction	Contact Finish	Number of Positions/Contacts	Contact Material	Number of Rows	Orientation	Ratings	Number of Ports	Connector Type	LED Color	Contact Finish Thickness	Termination	Operating Temperature [Max]	Operating Temperature [Min]
Amphenol ICC (FCI) 10118068-5136210LF	Through Hole	Thermoplastic	Shielded EMI Finger	Up	Gold	8p8c (RJ45 Ethernet)	Copper Alloy	1	90 °	Cat3	8	Jack	Green Yellow	Flash	Solder	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger Cat3
