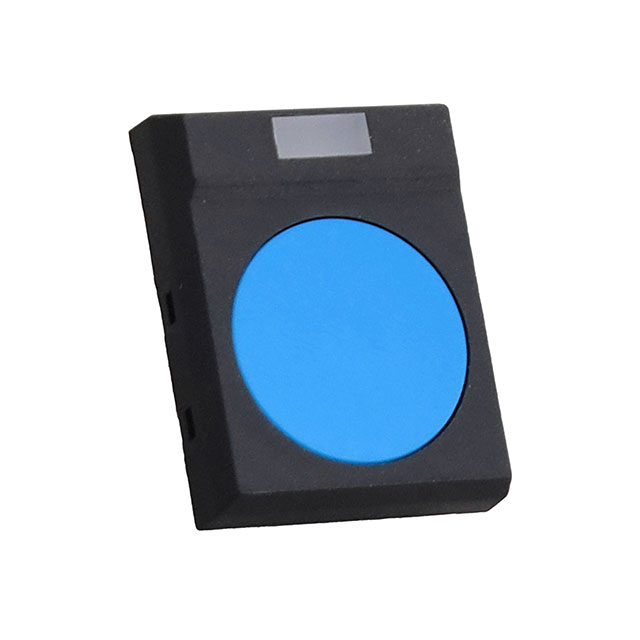

JF15RP2GE

Active

NKK Switches

ILLUMINATED ULTRA-THIN PROCESS SEALED TACTILE

Search across all available documentation for this part.

Active

NKK Switches

ILLUMINATED ULTRA-THIN PROCESS SEALED TACTILE

Technical Specifications

Parameters and characteristics for this part

Specification	JF15RP2GE

Actuator Height off PCB, Vertical [z]	5.08 mm
Actuator Material	Nylon, Polyamide (PA)
Actuator Orientation	Top Actuated
Actuator Type	Round Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC
Features	Process Sealed
Illumination	Illuminated
Illumination Type, Color	LED, Yellow
Illumination Voltage (Nominal)	1.9 VDC
Mechanical Life	500000 Cycles
Mounting Type	Through Hole
Operating Force	300 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Outline [x]	22.8 mm
Outline [y]	17.7 mm
Switch Function	Off-Mom
Switch Travel	0.4 mm
Termination Style	PC Pin

Part	Actuator Type	Operating Force	Mechanical Life	Illumination Type, Color	Actuator Orientation	Features	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Switch Function	Termination Style	Illumination Voltage (Nominal)	Switch Travel	Contact Rating @ Voltage	Outline [y]	Outline [x]	Illumination	Mounting Type	Actuator Height off PCB, Vertical [z]	Actuator Material
NKK Switches JF15RP2GC	Round Button	300 gf	500000 Cycles	LED Red	Top Actuated	Process Sealed	70 °C	-25 °C	SPST-NO	Off-Mom	PC Pin	2 VDC	0.4 mm	0.05 A 24 VDC	17.7 mm	22.8 mm	Illuminated	Through Hole	5.08 mm	Nylon Polyamide (PA)
NKK Switches JF15RP2GE	Round Button	300 gf	500000 Cycles	LED Yellow	Top Actuated	Process Sealed	70 °C	-25 °C	SPST-NO	Off-Mom	PC Pin	1.9 VDC	0.4 mm	0.05 A 24 VDC	17.7 mm	22.8 mm	Illuminated	Through Hole	5.08 mm	Nylon Polyamide (PA)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
