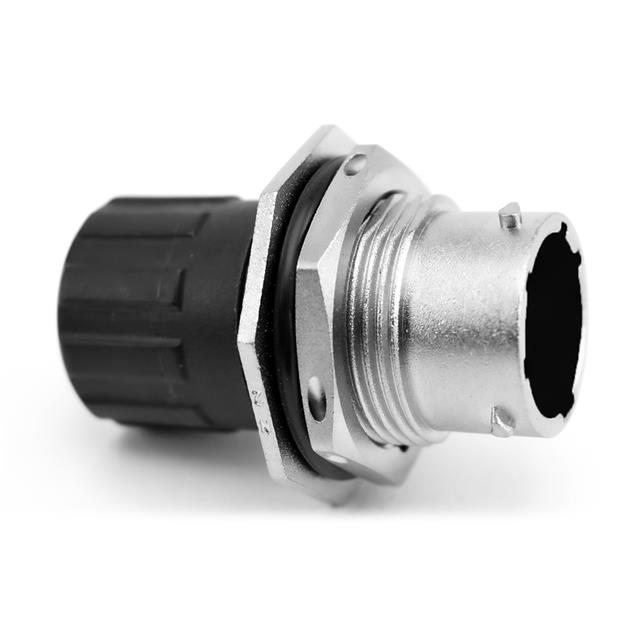

RT072028PNHEC03R
ActiveAmphenol Sine Systems Corp
RECEPTACLE, JAM NUT, 28 POSITION
Deep-Dive with AI
Search across all available documentation for this part.
RT072028PNHEC03R
ActiveAmphenol Sine Systems Corp
RECEPTACLE, JAM NUT, 28 POSITION
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RT072028PNHEC03R |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 16 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Backshell |
| Housing Color | Silver |
| Includes | 1 O-Ring, 1 Connector, 1 Nut |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Note | Contacts Not Included |
| Number of Positions | 28 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert [Max] | 28 |
| Shell Size - Insert [Min] | 20 |
| Shielding | Shielded |
| Type | For Male Pins |
RT072028 Series
| Part | Shell Material | Contact Size | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Type | Contact Shape | Number of Positions | Ingress Protection | Mounting Feature | Orientation | Shielding | Features | Material Flammability Rating | Note | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Housing Color | Fastening Type | Includes | Insert Material | Contact Type | Shell Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | Zinc Alloy | 16 | 28 | 20 | For Male Pins | Circular | 28 | IP67 - Dust Tight Waterproof | Bulkhead - Front Side Nut | N | Shielded | Backshell | UL94 V-0 | Contacts Not Included | Receptacle Housing | -40 °C | 105 ░C | Silver | Bayonet Lock | 1 Connector 1 Nut 1 O-Ring | Thermoplastic | Crimp | Nickel |
Amphenol Sine Systems Corp | |||||||||||||||||||||||
Amphenol Sine Systems Corp | Zinc Alloy | 16 | 28 | 20 | For Male Pins | Circular | 28 | IP67 - Dust Tight Waterproof | Bulkhead - Front Side Nut | N | Shielded | UL94 V-0 | Contacts Not Included | Receptacle Housing | -40 °C | 105 ░C | Silver | Bayonet Lock | 1 Connector 1 Nut 1 O-Ring | Thermoplastic | Crimp | Nickel | |
Amphenol Sine Systems Corp | Zinc Alloy | 16 | 28 | 20 | For Male Pins | Circular | 28 | IP67 - Dust Tight Waterproof | Bulkhead - Front Side Nut | N | Shielded | Backshell | UL94 V-0 | Contacts Not Included | Receptacle Housing | -40 °C | 125 °C | Silver | Bayonet Lock | 1 Connector 1 Nut 1 O-Ring | Thermoplastic | Crimp | Nickel |
Amphenol Sine Systems Corp | Zinc Alloy | 16 | 28 | 20 | For Female Sockets | Circular | 28 | IP67 - Dust Tight Waterproof | Bulkhead - Front Side Nut | N | Shielded | UL94 V-0 | Contacts Not Included | Receptacle Housing | -40 °C | 125 °C | Silver | Bayonet Lock | 1 Connector 1 Gasket 1 Nut 1 O-Ring | Thermoplastic | Crimp | Nickel |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 36.88 | |
| 10 | $ 32.30 | |||
| 25 | $ 30.90 | |||
| 50 | $ 29.91 | |||
| 100 | $ 28.91 | |||
| 250 | $ 27.31 | |||
Description
General part information
RT072028 Series
28 Position Circular Connector Receptacle Housing Panel Mount Backshell
