SM91502ALA-E
ActiveBourns Inc.

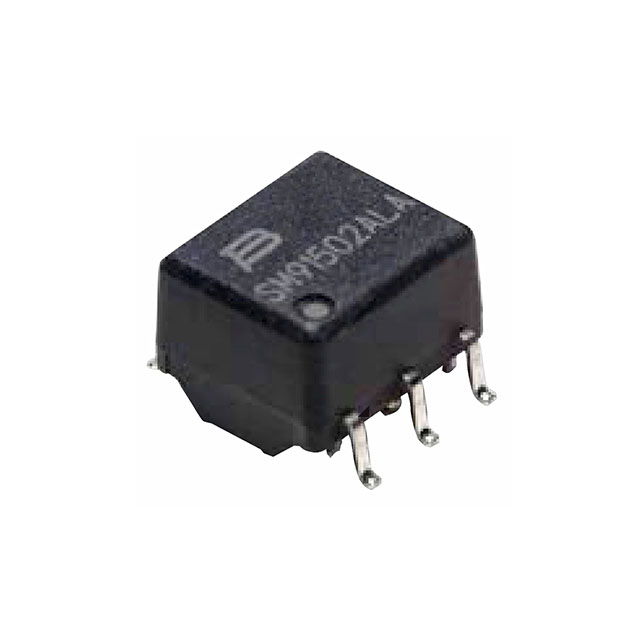

TRANSFORMER, BATTERY MANAGEMENT SYSTEM, 4.3V, SURFACE MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
SM91502ALA-E
ActiveBourns Inc.
TRANSFORMER, BATTERY MANAGEMENT SYSTEM, 4.3V, SURFACE MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SM91502ALA-E |
|---|---|
| Height - Seated (Max) | 5.72 mm |
| Height - Seated (Max) [Max] [z] | 0.225 in |
| Inductance | 150 µH |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size / Dimension [x] | 0.3 in |
| Size / Dimension [x] | 7.62 mm |
| Size / Dimension [y] | 6.73 mm |
| Size / Dimension [y] | 0.265 " |
| Turns Ratio - Primary:Secondary | 1:1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.82 | |
| 10 | $ 2.25 | |||
| 25 | $ 1.83 | |||
| 50 | $ 1.78 | |||
| 100 | $ 1.74 | |||
| 250 | $ 1.69 | |||
| Digi-Reel® | 1 | $ 2.82 | ||
| 10 | $ 2.25 | |||
| 25 | $ 1.83 | |||
| 50 | $ 1.78 | |||
| 100 | $ 1.74 | |||
| 250 | $ 1.69 | |||
| Tape & Reel (TR) | 800 | $ 1.68 | ||
| 1600 | $ 1.48 | |||
| 5600 | $ 1.36 | |||
Description
General part information
SM91502 Series
150µH Pulse Transformer 1:1 Surface Mount
