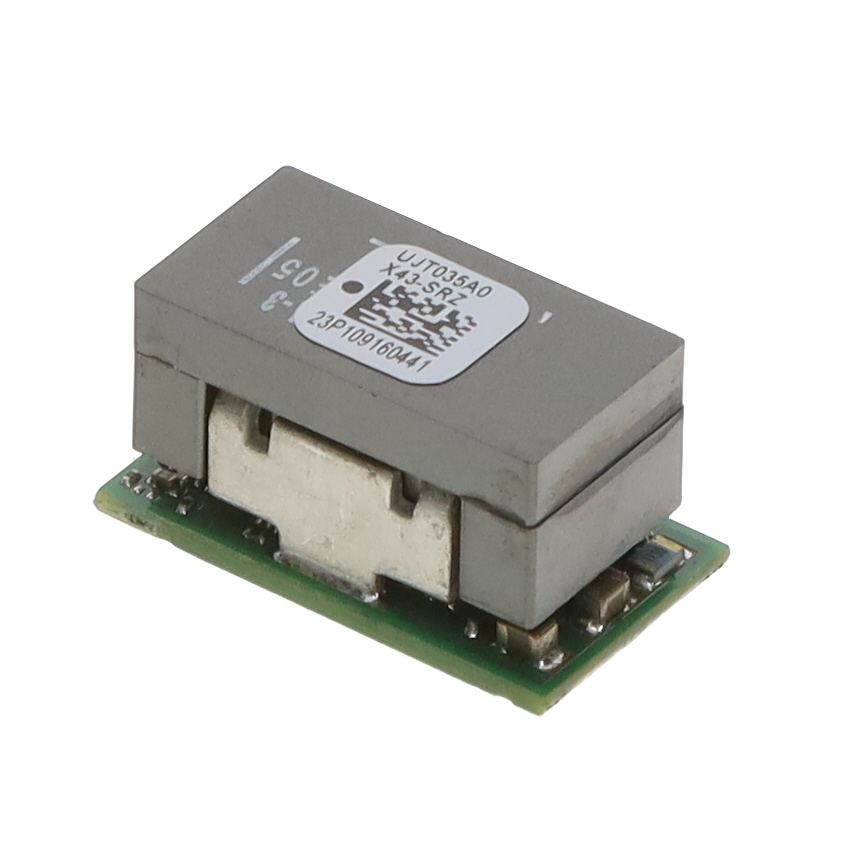

UJT035A0X43-SRZ

Active

OmniOn Power™

DC DC CONVERTER 0.51-3.63V

Search across all available documentation for this part.

Active

OmniOn Power™

DC DC CONVERTER 0.51-3.63V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.51 ~ 3.63V 35A 4.5V - 14.4V Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	UJT035A0X43-SRZ	UJT035 Series

Applications	ITE (Commercial)	ITE (Commercial)
Control Features	Active High, Enable	Active Low, Enable, Active High
Current - Output (Max) [Max]	35 A	35 A
Efficiency	94.3 %	94.3 %
Features	Remote On/Off, UVLO, OCP, OTP	Remote On/Off, UVLO, OCP, OTP
Mounting Type	Surface Mount	Surface Mount
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	17-SMD Module	17-SMD Module
Size / Dimension [x]	0.8 "	0.8 "
Size / Dimension [x]	20.3 mm	20.3 mm
Size / Dimension [y]	11.4 mm	11.4 mm
Size / Dimension [y]	0.45 in	0.45 in
Size / Dimension [z]	0.43 "	0.43 "
Size / Dimension [z]	11 mm	11 mm
Supplier Device Package	Module	Module
Type	Non-Isolated PoL Module, Digital	Non-Isolated PoL Module, Digital
Voltage - Input (Max) [Max]	14.4 V	14.4 V
Voltage - Input (Min) [Min]	4.5 V	4.5 V
Voltage - Output 1 [Max]	3.63 V	3.63 V
Voltage - Output 1 [Min]	0.51 V	0.51 V

DC DC CONVERTER 0.51-3.63V

Part	Voltage - Input (Min) [Min]	Number of Outputs	Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Applications	Package / Case	Supplier Device Package	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Mounting Type	Control Features	Efficiency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]
OmniOn Power™ UJT035A0X3-SRZ	4.5 V	1	Non-Isolated PoL Module, Digital	85 °C	-40 °C	OCP, OTP, Remote On/Off, UVLO	ITE (Commercial)	17-SMD Module	Module	3.63 V	0.51 V	Surface Mount	Active Low, Enable	94.3 %	11.4 mm	0.8 "	0.43 "	11 mm	0.45 in	20.3 mm	35 A	14.4 V
OmniOn Power™ UJT035A0X43-SRZ	4.5 V	1	Non-Isolated PoL Module, Digital	85 °C	-40 °C	OCP, OTP, Remote On/Off, UVLO	ITE (Commercial)	17-SMD Module	Module	3.63 V	0.51 V	Surface Mount	Active High, Enable	94.3 %	11.4 mm	0.8 "	0.43 "	11 mm	0.45 in	20.3 mm	35 A	14.4 V
