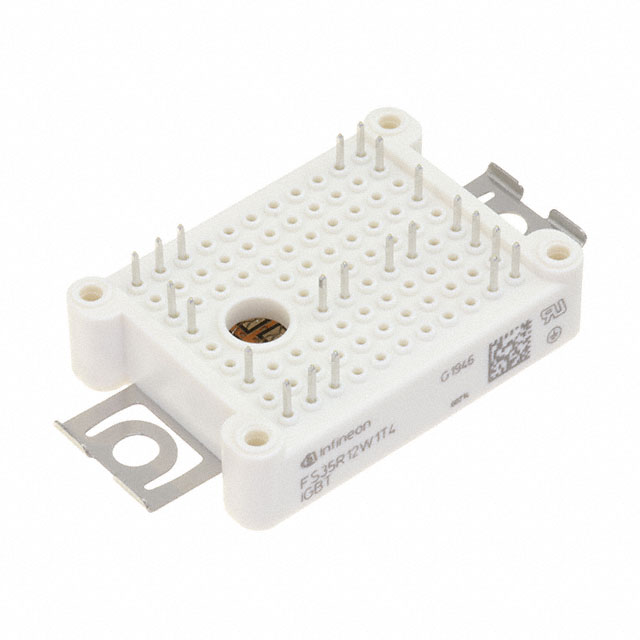

FS35R12W1T4BOMA1

Active

Infineon Technologies

THE FS35R12W1T4 IS A SIXPACK IGBT4 - T4 MODULE IN A EASYPACK™ 1B HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 35 A.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FS35R12W1T4BOMA1

Active

Infineon Technologies

THE FS35R12W1T4 IS A SIXPACK IGBT4 - T4 MODULE IN A EASYPACK™ 1B HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 35 A.

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FS35R12W1T4BOMA1

Configuration	Three Phase Inverter
Current - Collector (Ic) (Max) [Max]	65 A
Current - Collector Cutoff (Max) [Max]	1 mA
IGBT Type	Trench Field Stop
Input	Standard
Input Capacitance (Cies) @ Vce	2 nF
Mounting Type	Chassis Mount
NTC Thermistor	True
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power - Max [Max]	225 W
Supplier Device Package	Module
Vce(on) (Max) @ Vge, Ic	2.25 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

FS35R12 Series

Part	Mounting Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Configuration	Input	Supplier Device Package	Current - Collector (Ic) (Max) [Max]	Vce(on) (Max) @ Vge, Ic	Input Capacitance (Cies) @ Vce	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Power - Max [Max]	Current - Collector Cutoff (Max) [Max]	IGBT Type
Infineon Technologies FS35R12KE3GBOSA1	Chassis Mount	1200 V	Full Bridge	Standard	Module	55 A	2.15 V	2.5 nF	Module	125 °C	-40 °C	200 W	5 mA
Infineon Technologies FS35R12W1T7B11BOMA1	Chassis Mount	1200 V	Three Phase Inverter	Standard	AG-EASY1B	35 A	1.6 V	6.62 nF	Module	175 °C	-40 C	20 mW	7.3 µA	Trench Field Stop
Infineon Technologies FS35R12KT3BOSA1	Chassis Mount	1200 V	Full Bridge Inverter	Standard	Module	55 A	2.15 V	2.5 nF	Module	125 °C	-40 °C	210 W	5 mA
Infineon Technologies FS35R12W1T4BOMA1	Chassis Mount	1200 V	Three Phase Inverter	Standard	Module	65 A	2.25 V	2 nF	Module	150 °C	-40 °C	225 W	1 mA	Trench Field Stop

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 46.03
		24	$ 41.01
		48	$ 38.57
		96	$ 36.00
		240	$ 34.71

Description

General part information

FS35R12 Series

EasyPACK™1B 1200 V, 35 A sixpackIGBT modulewith TRENCHSTOPTMIGBT4, Emitter Controlled 4 diode and NTC. Also available with PressFIT contact technology:FS35R12W1T4_B11. If you would like to increase the power, have a look at theFS35R12W1T7featuring the latestTRENCHSTOP™ IGBT7chip technology.

Documents

Technical documentation and resources
