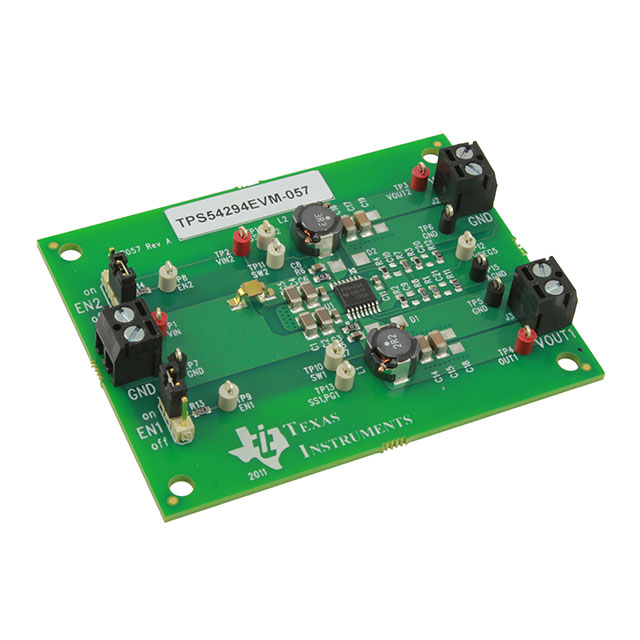

TPS54294EVM-057
ActiveEVAL MODULE FOR TPS54294-057
Deep-Dive with AI
Search across all available documentation for this part.
TPS54294EVM-057
ActiveEVAL MODULE FOR TPS54294-057
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TPS54294EVM-057 | TPS54294 Series |
|---|---|---|
| Board Type | Fully Populated | Fully Populated |
| Current - Output | 2 A | 2 A |
| Frequency - Switching | 700 kHz | 700 kHz |
| Function | - | Step-Down |
| Main Purpose | DC/DC, Step Down | DC/DC, Step Down |
| Mounting Type | - | Surface Mount |
| Number of Outputs | - | 2 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Output Configuration | - | Positive |
| Output Type | - | Adjustable |
| Outputs and Type | 2 | 2 |
| Outputs and Type | Non-Isolated | Non-Isolated |
| Package / Case | - | 4.4 mm |
| Package / Case | - | 16-PowerTSSOP, 16-VQFN Exposed Pad |
| Package / Case | - | 0.173 in |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 16-HTSSOP, 16-QFN (4x4) |
| Synchronous Rectifier | - | True |
| Topology | - | Buck |
| Utilized IC / Part | TPS54294 | TPS54294 |
| Voltage - Input (Max) | - | 18 V |
| Voltage - Input (Min) | - | 4.5 V |
| Voltage - Input [Max] | 18 V | 18 V |
| Voltage - Input [Min] | 4.5 V | 4.5 V |
| Voltage - Output | 1.2 V, 3.3 V | 1.2 - 3.3 V |
| Voltage - Output (Max) | - | 7 V |
| Voltage - Output (Min/Fixed) | - | 0.76 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
TPS54294 Series
4.5 V to 18 V input, dual 2 A output, synchronous step-down converter, with 1 ms fixed soft start
| Part | Synchronous Rectifier | Function | Package / Case [y] | Package / Case | Package / Case [y] | Voltage - Input (Min) [Min] | Output Configuration | Current - Output | Supplier Device Package | Frequency - Switching | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output (Max) [Max] | Topology | Output Type | Voltage - Output (Min/Fixed) [Min] | Number of Outputs [custom] | Voltage - Input (Max) [Max] | Outputs and Type | Outputs and Type | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output | Main Purpose | Board Type | Supplied Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments TPS54294PWPThe TPS54294 is a dual, adaptive on-time D-CAP2™ mode synchronous buck converter. The TPS54294 enables system designers to complete the suite of various end equipment’s power bus regulators with a cost effective, low component count, and low standby current solution. The main control loops of the TPS54294 use the D-CAP2™ mode control which provides a very fast transient response with no external compensation components. The adaptive on-time control supports seamless transition between PWM mode at higher load conditions and Eco-mode™ operation at light loads. Eco-mode™ allows the TPS54294 to maintain high efficiency during lighter load conditions. The TPS54294 is able to adapt to both low equivalent series resistance (ESR) output capacitors such as POSCAP or SP-CAP, and ultra-low ESR, ceramic capacitors. The device provides convenient and efficient operation with input voltages from 4.5V to 18V.
The TPS54294 is available in a 4.4mm × 5.0mm 16-pin TSSOP (PWP) package, and 4mm x 4mm 16-pin VQFN (RSA) package specified for an ambient temperature range from –40°C to 85°C.
The TPS54294 is a dual, adaptive on-time D-CAP2™ mode synchronous buck converter. The TPS54294 enables system designers to complete the suite of various end equipment’s power bus regulators with a cost effective, low component count, and low standby current solution. The main control loops of the TPS54294 use the D-CAP2™ mode control which provides a very fast transient response with no external compensation components. The adaptive on-time control supports seamless transition between PWM mode at higher load conditions and Eco-mode™ operation at light loads. Eco-mode™ allows the TPS54294 to maintain high efficiency during lighter load conditions. The TPS54294 is able to adapt to both low equivalent series resistance (ESR) output capacitors such as POSCAP or SP-CAP, and ultra-low ESR, ceramic capacitors. The device provides convenient and efficient operation with input voltages from 4.5V to 18V.
The TPS54294 is available in a 4.4mm × 5.0mm 16-pin TSSOP (PWP) package, and 4mm x 4mm 16-pin VQFN (RSA) package specified for an ambient temperature range from –40°C to 85°C. | Step-Down | 4.4 mm | 16-PowerTSSOP | 0.173 in | 4.5 V | Positive | 2 A | 16-HTSSOP | 700 kHz | Surface Mount | 85 °C | -40 °C | 7 V | Buck | Adjustable | 0.76 V | 2 | 18 V | ||||||||||
Texas Instruments TPS54294PWPRThe TPS54294 is a dual, adaptive on-time D-CAP2™ mode synchronous buck converter. The TPS54294 enables system designers to complete the suite of various end equipment’s power bus regulators with a cost effective, low component count, and low standby current solution. The main control loops of the TPS54294 use the D-CAP2™ mode control which provides a very fast transient response with no external compensation components. The adaptive on-time control supports seamless transition between PWM mode at higher load conditions and Eco-mode™ operation at light loads. Eco-mode™ allows the TPS54294 to maintain high efficiency during lighter load conditions. The TPS54294 is able to adapt to both low equivalent series resistance (ESR) output capacitors such as POSCAP or SP-CAP, and ultra-low ESR, ceramic capacitors. The device provides convenient and efficient operation with input voltages from 4.5V to 18V.
The TPS54294 is available in a 4.4mm × 5.0mm 16-pin TSSOP (PWP) package, and 4mm x 4mm 16-pin VQFN (RSA) package specified for an ambient temperature range from –40°C to 85°C.
The TPS54294 is a dual, adaptive on-time D-CAP2™ mode synchronous buck converter. The TPS54294 enables system designers to complete the suite of various end equipment’s power bus regulators with a cost effective, low component count, and low standby current solution. The main control loops of the TPS54294 use the D-CAP2™ mode control which provides a very fast transient response with no external compensation components. The adaptive on-time control supports seamless transition between PWM mode at higher load conditions and Eco-mode™ operation at light loads. Eco-mode™ allows the TPS54294 to maintain high efficiency during lighter load conditions. The TPS54294 is able to adapt to both low equivalent series resistance (ESR) output capacitors such as POSCAP or SP-CAP, and ultra-low ESR, ceramic capacitors. The device provides convenient and efficient operation with input voltages from 4.5V to 18V.
The TPS54294 is available in a 4.4mm × 5.0mm 16-pin TSSOP (PWP) package, and 4mm x 4mm 16-pin VQFN (RSA) package specified for an ambient temperature range from –40°C to 85°C. | Step-Down | 4.4 mm | 16-PowerTSSOP | 0.173 in | 4.5 V | Positive | 2 A | 16-HTSSOP | 700 kHz | Surface Mount | 85 °C | -40 °C | 7 V | Buck | Adjustable | 0.76 V | 2 | 18 V | ||||||||||
Texas Instruments TPS54294EVM-057TPS54294 SWIFT™, D-CAP2™, Eco-Mode™ DC/DC, Step Down 2, Non-Isolated Outputs Evaluation Board | 2 A | 700 kHz | 2 | Non-Isolated | 18 V | 4.5 V | 1.2 V, 3.3 V | DC/DC, Step Down | Fully Populated | Board(s) | TPS54294 | |||||||||||||||||
Texas Instruments TPS54294RSARThe TPS54294 is a dual, adaptive on-time D-CAP2™ mode synchronous buck converter. The TPS54294 enables system designers to complete the suite of various end equipment’s power bus regulators with a cost effective, low component count, and low standby current solution. The main control loops of the TPS54294 use the D-CAP2™ mode control which provides a very fast transient response with no external compensation components. The adaptive on-time control supports seamless transition between PWM mode at higher load conditions and Eco-mode™ operation at light loads. Eco-mode™ allows the TPS54294 to maintain high efficiency during lighter load conditions. The TPS54294 is able to adapt to both low equivalent series resistance (ESR) output capacitors such as POSCAP or SP-CAP, and ultra-low ESR, ceramic capacitors. The device provides convenient and efficient operation with input voltages from 4.5V to 18V.
The TPS54294 is available in a 4.4mm × 5.0mm 16-pin TSSOP (PWP) package, and 4mm x 4mm 16-pin VQFN (RSA) package specified for an ambient temperature range from –40°C to 85°C.
The TPS54294 is a dual, adaptive on-time D-CAP2™ mode synchronous buck converter. The TPS54294 enables system designers to complete the suite of various end equipment’s power bus regulators with a cost effective, low component count, and low standby current solution. The main control loops of the TPS54294 use the D-CAP2™ mode control which provides a very fast transient response with no external compensation components. The adaptive on-time control supports seamless transition between PWM mode at higher load conditions and Eco-mode™ operation at light loads. Eco-mode™ allows the TPS54294 to maintain high efficiency during lighter load conditions. The TPS54294 is able to adapt to both low equivalent series resistance (ESR) output capacitors such as POSCAP or SP-CAP, and ultra-low ESR, ceramic capacitors. The device provides convenient and efficient operation with input voltages from 4.5V to 18V.
The TPS54294 is available in a 4.4mm × 5.0mm 16-pin TSSOP (PWP) package, and 4mm x 4mm 16-pin VQFN (RSA) package specified for an ambient temperature range from –40°C to 85°C. | Step-Down | 16-VQFN Exposed Pad | 4.5 V | Positive | 2 A | 16-QFN (4x4) | 700 kHz | Surface Mount | 85 °C | -40 °C | 7 V | Buck | Adjustable | 0.76 V | 2 | 18 V |
Description
General part information
TPS54294 Series
The TPS54294 is a dual, adaptive on-time D-CAP2™ mode synchronous buck converter. The TPS54294 enables system designers to complete the suite of various end equipment’s power bus regulators with a cost effective, low component count, and low standby current solution. The main control loops of the TPS54294 use the D-CAP2™ mode control which provides a very fast transient response with no external compensation components. The adaptive on-time control supports seamless transition between PWM mode at higher load conditions and Eco-mode™ operation at light loads. Eco-mode™ allows the TPS54294 to maintain high efficiency during lighter load conditions. The TPS54294 is able to adapt to both low equivalent series resistance (ESR) output capacitors such as POSCAP or SP-CAP, and ultra-low ESR, ceramic capacitors. The device provides convenient and efficient operation with input voltages from 4.5V to 18V.
The TPS54294 is available in a 4.4mm × 5.0mm 16-pin TSSOP (PWP) package, and 4mm x 4mm 16-pin VQFN (RSA) package specified for an ambient temperature range from –40°C to 85°C.
The TPS54294 is a dual, adaptive on-time D-CAP2™ mode synchronous buck converter. The TPS54294 enables system designers to complete the suite of various end equipment’s power bus regulators with a cost effective, low component count, and low standby current solution. The main control loops of the TPS54294 use the D-CAP2™ mode control which provides a very fast transient response with no external compensation components. The adaptive on-time control supports seamless transition between PWM mode at higher load conditions and Eco-mode™ operation at light loads. Eco-mode™ allows the TPS54294 to maintain high efficiency during lighter load conditions. The TPS54294 is able to adapt to both low equivalent series resistance (ESR) output capacitors such as POSCAP or SP-CAP, and ultra-low ESR, ceramic capacitors. The device provides convenient and efficient operation with input voltages from 4.5V to 18V.
