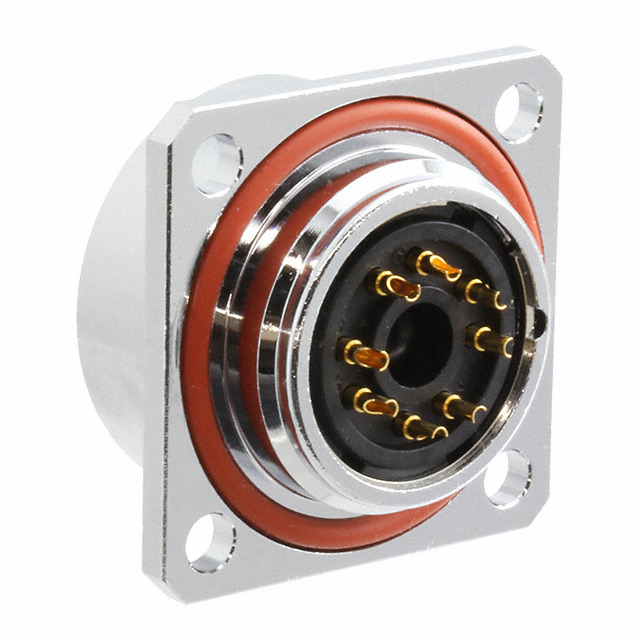

JB5AX08YL3030

Obsolete

JAE Electronics

CONN CIRC RCPT 8POS SOLDER CUP

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN CIRC RCPT 8POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	JB5AX08YL3030

Applications	Telecommunications, Medical, Test & Measurement
Connector Type	Female Sockets, Male Pins, Receptacle
Contact Finish - Mating	Gold
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Feature	Flange
Number of Positions	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Chromium
Shell Material	Copper Alloy
Shell Size - Insert	X
Shielding	Shielded

Part	Ingress Protection	Orientation	Mounting Feature	Current Rating (Amps)	Shell Material	Connector Type	Shell Size - Insert	Operating Temperature [Max]	Operating Temperature [Min]	Shell Finish	Fastening Type	Shielding	Number of Positions	Primary Material	Applications	Contact Finish - Mating
JAE Electronics JB5AX08YL3030	IP68 - Dust Tight Waterproof	Keyed	Flange	2 A	Copper Alloy	Female Sockets Male Pins Receptacle	X	85 °C	-55 °C	Chromium	Push-Pull	Shielded	8	Metal	Medical Telecommunications Test & Measurement	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

8 Position Circular Connector Receptacle, Female Sockets and Male Pins Solder Cup

Technical documentation and resources

No documents available
