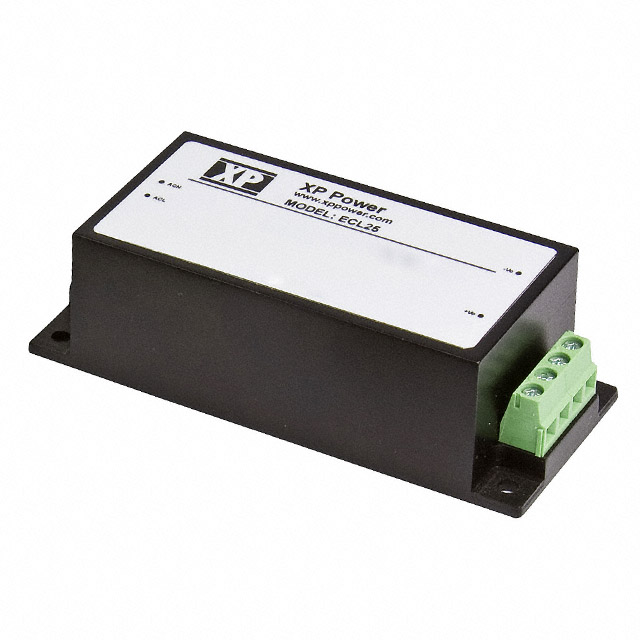

ECL25US48-S

Active

XP POWER

AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 25 W, 48 V, 520 MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Certificate of Conformity EN +4

ECL25US48-S

Active

XP POWER

AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 25 W, 48 V, 520 MA

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Certificate of Conformity EN +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ECL25US48-S

Applications	ITE (Commercial)
Features	Universal Input, Adjustable Output, DC Input Capable
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	25 W
Size / Dimension [x]	3.78 "
Size / Dimension [x]	96 mm
Size / Dimension [y]	1.57 "
Size / Dimension [y]	40 mm
Size / Dimension [z]	28.5 mm
Size / Dimension [z]	1.12 in
Standard Number	62368-1
Type	Enclosed
Voltage - Isolation	3000 V
Voltage - Output 1	48 V

ECL25 Series

Part	Mounting Type	Approval Agency	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Voltage - Output 1	Standard Number	Package / Case	Power (Watts)	Load Regulation	Features	Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Number of Outputs	Line Regulation	Weight	Weight	Voltage - Isolation	Current - Output 1	Efficiency	Current - Output (Max)
XP POWER ECL25US48-P	Through Hole	CSA cUL EN IEC UL	ITE (Commercial)	-20 °C	70 °C	520 mA	48 V	62368-1	4-DIP Module	25 W	1 %	Universal Input	Open Frame	75.2 mm	1.05 "	26.7 mm	1.36 "	34.6 mm	2.96 in	1	0.5 %	65.77 g	0.145 lb
XP POWER ECL25US48-S	Chassis Mount		ITE (Commercial)	-20 °C	70 °C		48 V	62368-1		25 W		Adjustable Output DC Input Capable Universal Input	Enclosed	96 mm	1.12 in	28.5 mm	1.57 "	40 mm	3.78 "	1				3000 V
XP POWER ECL25US15-S	Chassis Mount		ITE (Commercial)	-20 °C	70 °C		15 V	62368-1		25 W		Adjustable Output DC Input Capable Universal Input	Enclosed	96 mm	1.12 in	28.5 mm	1.57 "	40 mm	3.78 "	1				3000 V	1.67 A	80 %
XP POWER ECL25US03-P	Through Hole	CSA EN IEC UL	ITE (Commercial)	-20 °C	70 °C	6 A	3.3 V	62368-1	4-DIP Module	25 W	1 %	Universal Input	Open Frame	75.2 mm	1.05 "	26.7 mm	1.36 "	34.6 mm	2.96 in	1	0.5 %	63.5 g	0.14 lb			75 %
XP POWER ECL25US03-T	Chassis Mount		ITE (Commercial)	-20 °C	70 °C		3.3 V	62368-1		20 W		Adjustable Output DC Input Capable Universal Input	Open Frame	87.9 mm	0.88 in	22.4 mm	1.36 "	34.6 mm	3.46 "	1				3000 V	6 A	75 %
XP POWER ECL25US09-T	Chassis Mount		ITE (Commercial)	-20 °C	70 °C		9 V	62368-1		25 W		Adjustable Output DC Input Capable Universal Input	Open Frame	87.9 mm	0.88 in	22.4 mm	1.36 "	34.6 mm	3.46 "	1				3000 V	2.8 A	80 %
XP POWER ECL25US15-T	Chassis Mount		ITE (Commercial)	-20 °C	70 °C		15 V	62368-1		25 W		Adjustable Output DC Input Capable Universal Input	Open Frame	87.9 mm	0.88 in	22.4 mm	1.36 "	34.6 mm	3.46 "	1				3000 V	1.67 A	80 %
XP POWER ECL25US05-P	Through Hole	CSA EN IEC UL	ITE (Commercial)	-20 °C	70 °C	5 A	5 V	62368-1	4-DIP Module	25 W	1 %	Universal Input	Open Frame	75.2 mm	1.05 "	26.7 mm	1.36 "	34.6 mm	2.96 in	1	0.5 %	63.5 g	0.14 lb			78 %
XP POWER ECL25US09-E	Through Hole	CSA cUL EN IEC UL	ITE (Commercial)	-20 °C	70 °C		9 V	62368-1	4-DIP Module	25 W	1 %	Universal Input	Enclosed	78.7 mm	1.1 in	27.9 mm	1.5 in	38.1 mm	3.1 in	1	0.5 %	150.14 g	0.331 lb			80 %	2.8 A
XP POWER ECL25US05-T	Chassis Mount	CE	ITE (Commercial)	-20 °C	70 °C		5 V	62368-1		25 W		Adjustable Output DC Input Capable Universal Input	Open Frame	87.9 mm	0.88 in	22.4 mm	1.36 "	34.6 mm	3.46 "	1				4000 V	5 A	78 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 63.02
Newark	Each	25	$ 56.72
		100	$ 52.94
