Mill-Max Manufacturing Corp.

CONN PIN RCPT .032-.046 KNURL

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .032-.046 KNURL

Technical Specifications

Parameters and characteristics for this part

Specification	0358-0-15-15-34-27-10-0

Accepts Pin Diameter	0.81 mm, 1.17 mm
Accepts Pin Diameter [Max]	0.046 in
Accepts Pin Diameter [Min]	0.032 "
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter	2.79 mm
Flange Diameter [diameter]	0.11 in
Length - Overall [x]	0.343 in
Length - Overall [x]	8.71 mm
Mounting Hole Diameter [diameter]	0.09 in
Mounting Hole Diameter [diameter]	2.29 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	1.63 mm
Pin Hole Diameter [diameter]	0.064 in
Socket Depth	0.19 in
Socket Depth	4.83 mm
Tail Type	Turret
Termination	Knurled, Press-Fit

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Flange Diameter [diameter]	Flange Diameter	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Termination	Contact Finish	Tail Type	Accepts Pin Diameter	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Socket Depth	Socket Depth	Length - Overall [x]	Length - Overall [x]
Mill-Max Manufacturing Corp. 0358-0-15-15-34-14-10-0	-55 °C	125 °C	0.09 in	2.29 mm	0.11 in	2.79 mm	Beryllium Copper	10 Áin	0.25 Ám	1.63 mm	0.064 in	Knurled Press-Fit	Gold	Turret	0.81 mm 1.17 mm	0.046 in	0.032 "	0.19 in	4.83 mm	0.343 in	8.71 mm
Mill-Max Manufacturing Corp. 0358-0-15-01-34-14-10-0	-55 °C	125 °C	0.09 in	2.29 mm	0.11 in	2.79 mm	Beryllium Copper	10 Áin	0.25 Ám	1.63 mm	0.064 in	Knurled Press-Fit	Gold	Turret	0.81 mm 1.17 mm	0.046 in	0.032 "	0.19 in	4.83 mm	0.343 in	8.71 mm
Mill-Max Manufacturing Corp. 0358-0-15-15-34-27-10-0	-55 °C	125 °C	0.09 in	2.29 mm	0.11 in	2.79 mm	Beryllium Copper	30 Áin	0.76 Ám	1.63 mm	0.064 in	Knurled Press-Fit	Gold	Turret	0.81 mm 1.17 mm	0.046 in	0.032 "	0.19 in	4.83 mm	0.343 in	8.71 mm
Mill-Max Manufacturing Corp. 0358-0-15-80-34-27-10-0	-55 °C	125 °C	0.09 in	2.29 mm	0.11 in	2.79 mm	Beryllium Copper	30 Áin	0.76 Ám	1.63 mm	0.064 in	Knurled Press-Fit	Gold	Turret	0.81 mm 1.17 mm	0.046 in	0.032 "	0.19 in	4.83 mm	0.343 in	8.71 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

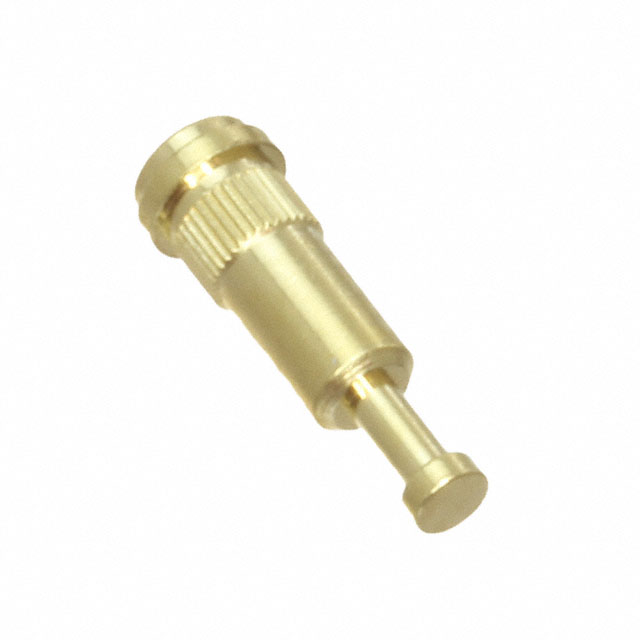

Pin Receptacle Connector 0.032" ~ 0.046" (0.81mm ~ 1.17mm) Turret Press-Fit, Knurled
