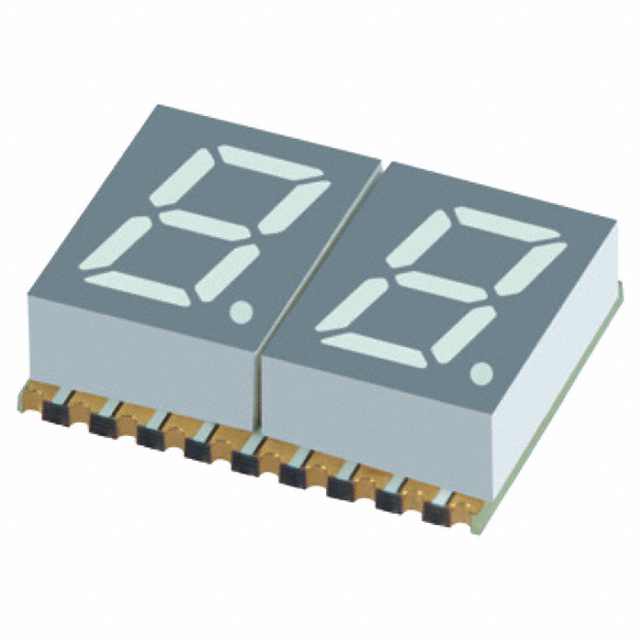

XZFBBA07C2

Obsolete

SunLED

DISPLAY 7SEG 0.3" DBL BLUE 20SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XZFBBA07C2

Obsolete

SunLED

DISPLAY 7SEG 0.3" DBL BLUE 20SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XZFBBA07C2

Color	Blue
Common Pin	Common Cathode
Current - Test	10 mA
Digit/Alpha Size	0.3 in
Digit/Alpha Size	7.62 mm
Display Type	7-Segment
Millicandela Rating	2 mcd
Number of Characters	2
Package / Case	20-SMD, No Lead
Power Dissipation (Max) [Max]	120 mW
Size / Dimension [x]	0.472 in
Size / Dimension [x]	12 mm
Size / Dimension [y]	0.583 inches
Size / Dimension [y]	14.8 mm
Size / Dimension [z]	3.75 mm
Size / Dimension [z]	0.148 in
Voltage - Forward (Vf) (Typ)	3.05 V
Wavelength - Peak	468 nm

XZFBBA07 Series

Part	Display Type	Digit/Alpha Size	Digit/Alpha Size	Package / Case	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Current - Test	Number of Characters [custom]	Color	Common Pin	Millicandela Rating	Power Dissipation (Max) [Max]	Number of Characters	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]
SunLED XZFBBA07A	7-Segment	0.3 in	7.62 mm	10-SMD No Lead	468 nm	3.05 V	10 mA	1	Blue	Common Anode	2.5 mcd	120 mW
SunLED XZFBBA07A2	7-Segment	0.3 in	7.62 mm	20-SMD No Lead	468 nm	3.05 V	10 mA		Blue	Common Anode	2 mcd	120 mW	2	3.75 mm	0.472 in	0.583 inches	14.8 mm	12 mm	0.148 in
SunLED XZFBBA07C	7-Segment	0.3 in	7.62 mm	10-SMD No Lead	468 nm	3.05 V	10 mA	1	Blue	Common Cathode	2 mcd	120 mW			3.75 mm	7.3 mm			10 mm	0.394 in	0.287 in	0.148 "
SunLED XZFBBA07C2	7-Segment	0.3 in	7.62 mm	20-SMD No Lead	468 nm	3.05 V	10 mA		Blue	Common Cathode	2 mcd	120 mW	2	3.75 mm	0.472 in	0.583 inches	14.8 mm	12 mm	0.148 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

XZFBBA07 Series

Display Modules - LED Character and Numeric Blue 7-Segment 2 Character Common Cathode 3.05V 10mA 0.472" H x 0.583" W x 0.148" D (12.00mm x 14.80mm x 3.75mm) 20-SMD, No Lead
