SDT30A100CTE

Obsolete

Diodes Inc

NRND = NOT RECOMMENDED FOR NEW DESIGN

Search across all available documentation for this part.

Obsolete

Diodes Inc

NRND = NOT RECOMMENDED FOR NEW DESIGN

Technical Specifications

Parameters and characteristics for this part

Specification	SDT30A100CTE

Current - Average Rectified (Io) (per Diode)	15 A
Current - Reverse Leakage @ Vr	80 µA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C

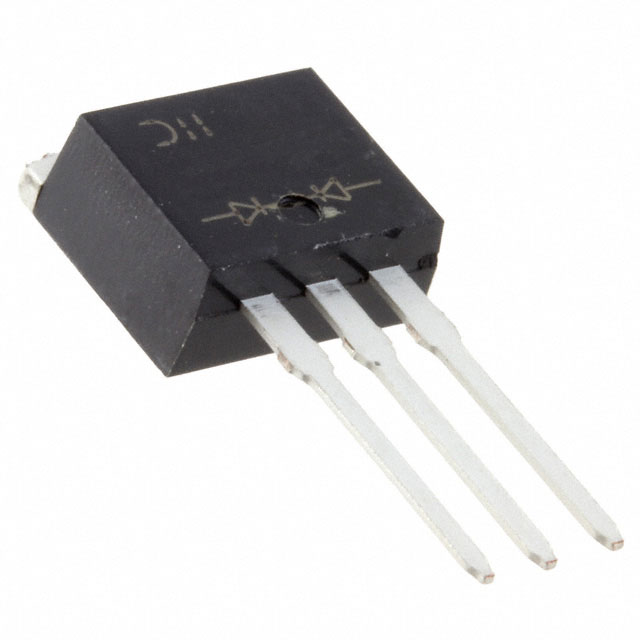

Package / Case	TO-262AA, TO-262-3 Long Leads, I2PAK
Speed	200 mA, 500 ns
Supplier Device Package	TO-262
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	100 V
Voltage - Forward (Vf) (Max) @ If	730 mV

NRND = Not Recommended for New Design

Part	Voltage - Forward (Vf) (Max) @ If [Max]	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Mounting Type	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io) (per Diode)	Diode Configuration
Diodes Inc SDT30B100D1-13	850 mV	Schottky	100 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	Surface Mount	30 A	120 µA	200 mA 500 ns	175 ░C	-55 C	TO-252-3
Diodes Inc SDT30A100CTE		Schottky	100 V	I2PAK TO-262-3 Long Leads TO-262AA	Through Hole		80 µA	200 mA 500 ns	150 °C	-55 °C	TO-262	730 mV	15 A	1 Pair Common Cathode

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 0.87

General part information

NRND = Not Recommended for New Design

Technical documentation and resources
