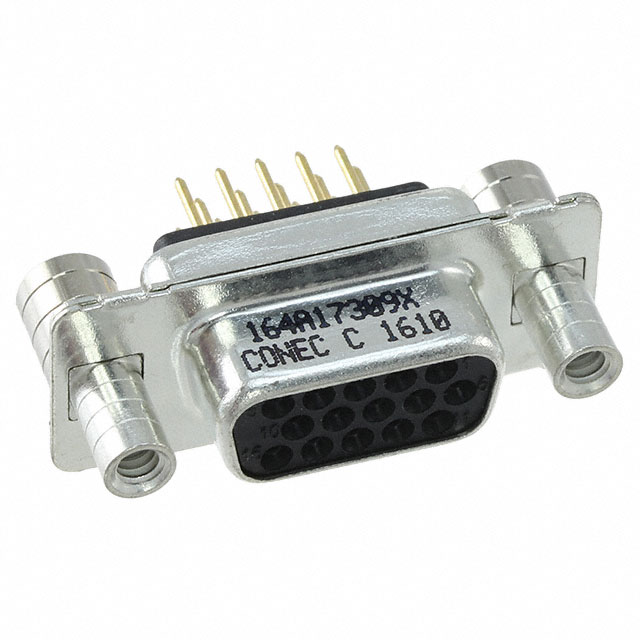

164A17309X

Active

Amphenol CONEC

CONN D-SUB HD RCPT 15P VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

164A17309X

Active

Amphenol CONEC

CONN D-SUB HD RCPT 15P VERT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	164A17309X

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	High Density
Termination	Solder
Voltage Rating	60 VDC

164A173 Series

Part	Mounting Type	Material Flammability Rating	Contact Type	Contact Material	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Voltage Rating	Number of Rows	Connector Style	Flange Feature [custom]	Flange Feature [custom]	Contact Finish Thickness	Connector Type	Termination	Current Rating (Amps)	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [custom]	Dielectric Material	Color	Shell Size, Connector Layout	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout
Amphenol CONEC 164A17329X	Through Hole	UL94 V-0	Signal	Copper Alloy	44	-55 °C	125 °C	Gold	60 VDC	3	D-Sub High Density	4-40	M3	Flash	Receptacle Female Sockets	Solder	3 A	3	B DB	Polybutylene Terephthalate (PBT) Glass Filled	Black
Amphenol CONEC 164A17389X	Through Hole	UL94 V-0	Signal	Copper Alloy	62	-55 °C	125 °C	Gold	60 VDC	3	D-Sub High Density				Receptacle Female Sockets	Solder	3 A			Polybutylene Terephthalate (PBT) Glass Filled	Black	4	4-40 Board Side	8 çin	0.203 çm
Amphenol CONEC 164A17339X	Through Hole	UL94 V-0	Signal	Copper Alloy	62	-55 °C	125 °C	Gold	60 VDC	3	D-Sub High Density	4-40	M3	Flash	Receptacle Female Sockets	Solder	3 A			Polybutylene Terephthalate (PBT) Glass Filled	Black	4
Amphenol CONEC 164A17309X	Through Hole	UL94 V-0	Signal	Copper Alloy	15	-55 °C	125 °C	Gold	60 VDC	3	D-Sub High Density				Receptacle Female Sockets	Solder	3 A		DE E	Polybutylene Terephthalate (PBT) Glass Filled	Black		4-40			1	High Density
Amphenol CONEC 164A17369X	Through Hole	UL94 V-0	Signal	Copper Alloy	26	-55 °C	125 °C	Gold	60 VDC	3	D-Sub High Density				Receptacle Female Sockets	Solder	3 A			Polybutylene Terephthalate (PBT) Glass Filled	Black	2	4-40 Board Side	8 çin	0.203 çm			(DA A) High Density

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.51
		10	$ 7.55
		25	$ 7.26
		50	$ 6.97
		100	$ 6.81

Description

General part information

164A173 Series

15 Position D-Sub, High Density Receptacle, Female Sockets Connector
