DW-11-10-G-D-452

Active

CONN HDR 22POS 0.1 STACK T/H

Active

CONN HDR 22POS 0.1 STACK T/H

Description

General part information

22 Position Header Spacer Connector 0.100" (2.54mm) Gold Through Hole

Parameters and characteristics for this part

Specification	DW-11-10-G-D-452

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	10 µin
Length - Overall Pin	0.83 in
Length - Post (Mating)	0.268 in
Length - Stack Height	0.452 in
Length - Tail	0.11 in
Mounting Type	Through Hole
Number of Positions	22
Number of Rows	2
Pitch	0.1 in
Row Spacing	0.1 in
Termination	Solder

Part	Mounting Type	Number of Rows	Termination	Length - Overall Pin	Number of Positions	Length - Tail	Contact Finish Thickness - Post (Mating)	Length - Post (Mating)	Length - Stack Height	Pitch	Contact Finish - Post (Mating)	Row Spacing	Color
Samtec Inc. DW-11-10-F-D-433	Through Hole	2	Solder	0.83 in	22	0.11 in	3 µin	0.287 in	0.433 in	0.1 in	Gold	0.1 in	Black
Samtec Inc. DW-11-10-G-D-549	Through Hole	2	Solder	0.83 in	22	0.11 in	10 µin	0.171 in	0.549 in	0.1 in	Gold	0.1 in	Black
Samtec Inc. DW-11-10-G-D-452	Through Hole	2	Solder	0.83 in	22	0.11 in	10 µin	0.268 in	0.452 in	0.1 in	Gold	0.1 in	Black
Samtec Inc. DW-11-10-G-S-550	Through Hole	1	Solder	0.83 in	11	0.11 in	10 µin	0.17 in	0.55 in	0.1 in	Gold		Black
Samtec Inc. DW-11-10-T-D-310	Through Hole	2	Solder	0.83 in	22	0.11 in		0.41 in	0.31 in	0.1 in	Tin	0.1 in	Black

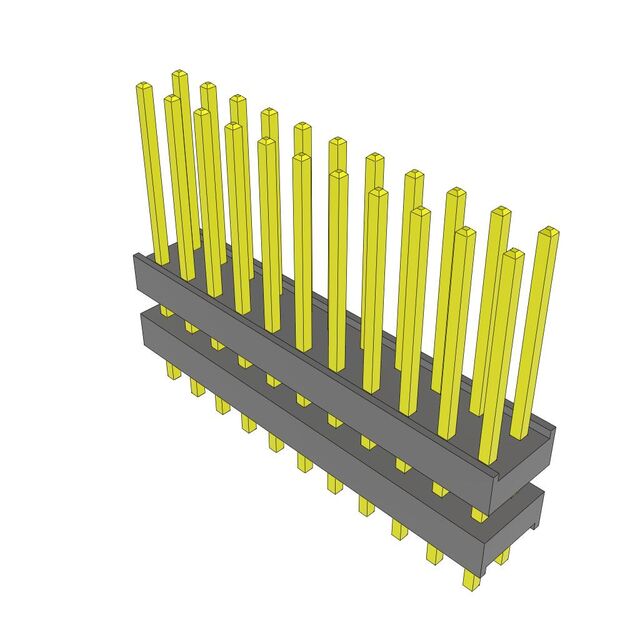

Samtec Inc. DW-11-10-L-D-275	Through Hole	2	Solder	0.83 in	22	0.11 in	10 µin	0.445 in	0.275 in	0.1 in	Gold	0.1 in	Black
Samtec Inc. DW-11-10-F-D-450	Through Hole	2	Solder	0.83 in	22	0.11 in	3 µin	0.27 in	0.45 in	0.1 in	Gold	0.1 in	Black
Samtec Inc. DW-11-10-L-S-300	Through Hole	1	Solder	0.83 in	11	0.11 in	10 µin	0.42 in	0.3 in	0.1 in	Gold		Black
Samtec Inc. DW-11-10-G-D-552	Through Hole	2	Solder	0.83 in	22	0.11 in	10 µin	0.168 in	0.552 in	0.1 in	Gold	0.1 in	Black
Samtec Inc. DW-11-10-S-S-450	Through Hole	1	Solder	0.83 in	11	0.11 in	30 µin	0.27 in	0.45 in	0.1 in	Gold		Black
