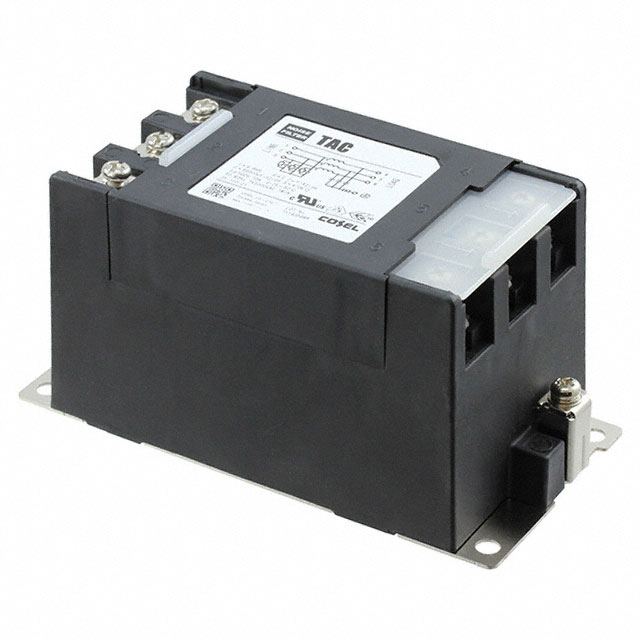

TAC-30-683
ActiveCosel USA, Inc.
LINE FILTER 500VAC 30A CHASSIS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TAC-30-683
ActiveCosel USA, Inc.
LINE FILTER 500VAC 30A CHASSIS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TAC-30-683 |
|---|---|
| Applications | General Purpose |
| Approval Agency | cURus, VDE |
| Configuration | Single Stage |
| Current | 30 A |
| Filter Type | Three Phase (Delta) |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | 50 Hz |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Termination Style | Terminal Block |
| Voltage - Rated AC | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 88.25 | |
| 10 | $ 85.31 | |||
| 25 | $ 82.37 | |||
| 50 | $ 79.42 | |||
| 100 | $ 72.81 | |||
Description
General part information
TAC-30 Series
Three Phase (Delta) EMC/EMI Line Filter 30 A 500V 50/60Hz Single Stage Terminal Block
