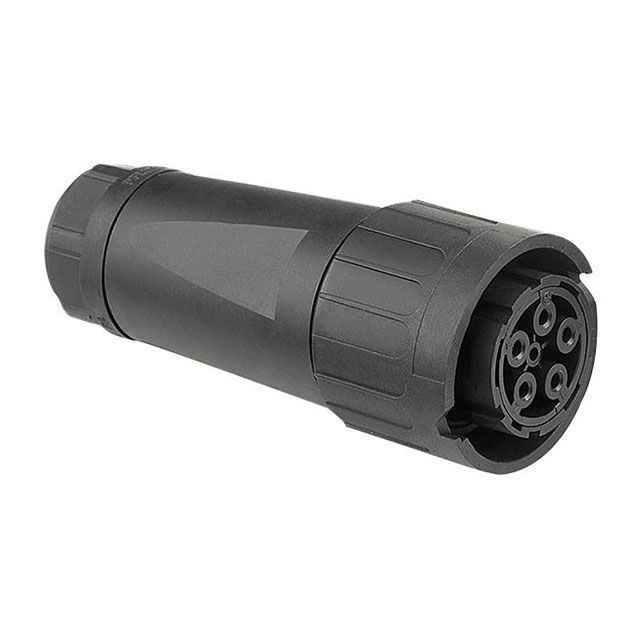

C016 20E004 8012

Active

Amphenol Tuchel Industrial

CONN PLUG FMALE 5POS SCREW

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG FMALE 5POS SCREW

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	C016 20E004 8012	C016 20E004 Series

Connector Type	Female Sockets, Plug	Female Sockets, Plug
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Strain Relief	Strain Relief
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	5	5
Operating Temperature [custom]	100 °C, -25 °C	-25 - 100 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shell Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	2	2
Termination	Screw	Screw

CONN PLUG FMALE 5POS SCREW

Part	Features	Primary Material	Operating Temperature [custom]	Shell Size - Insert	Termination	Fastening Type	Mounting Type	Orientation	Ingress Protection	Connector Type	Shell Material	Number of Positions
Amphenol Tuchel Industrial C016 20E004 8012	Strain Relief	Plastic	-25 °C, 100 °C	2	Screw	Bayonet Lock	Free Hanging (In-Line)	Keyed	IP65 - Dust Tight, Water Resistant	Female Sockets, Plug	Polyamide (PA66), Nylon 6/6	5
Amphenol Tuchel Industrial C016 20E004 8002	Strain Relief	Plastic	-25 °C, 100 °C	2	Screw	Bayonet Lock	Free Hanging (In-Line)	Keyed	IP65 - Dust Tight, Water Resistant	Female Sockets, Plug	Polyamide (PA66), Nylon 6/6	5
Amphenol Tuchel Industrial C016 20E004 8022	Strain Relief	Plastic	-25 °C, 100 °C	2	Screw	Bayonet Lock	Free Hanging (In-Line)	Keyed	IP65 - Dust Tight, Water Resistant	Female Sockets, Plug	Polyamide (PA66), Nylon 6/6	5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 (4 + PE) Position Circular Connector Plug, Female Sockets Screw
